F1M Modular Series — Seven Installations From One Module
LUXERA F1M modular track light: two module diameters, interchangeable lens or reflector optics, 10–40 W, and seven installation versions from one module family.
Description

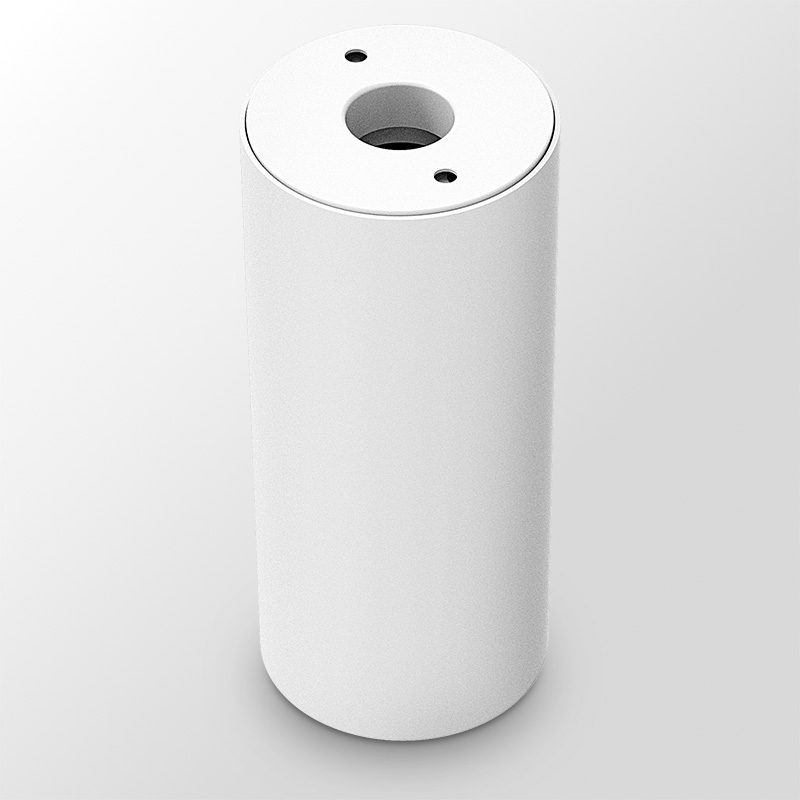

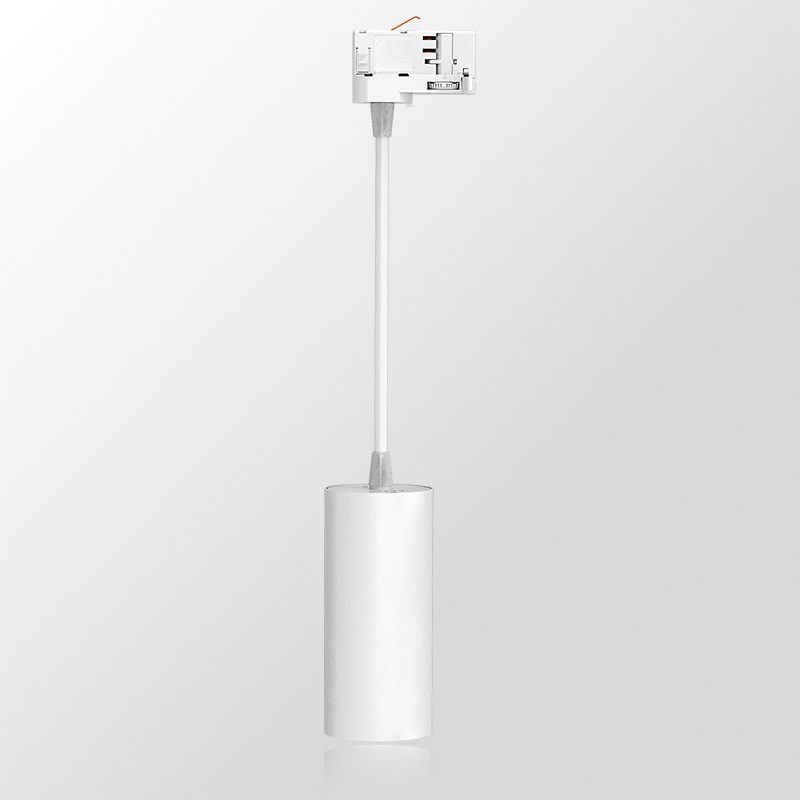

F1M is a modular system, not a single luminaire. One light module in two diameters — D62 and D85 — drops into seven different bodies: integrated tracklight, intrack tracklight, surface track light, recessed track light, track pendant, ceiling-mounted pendant and surface-mounted downlight.
Optics are interchangeable between lens and reflector, and the front ring can be changed, so a distributor can stock one module and cover several beam angles, finishes and installation types.

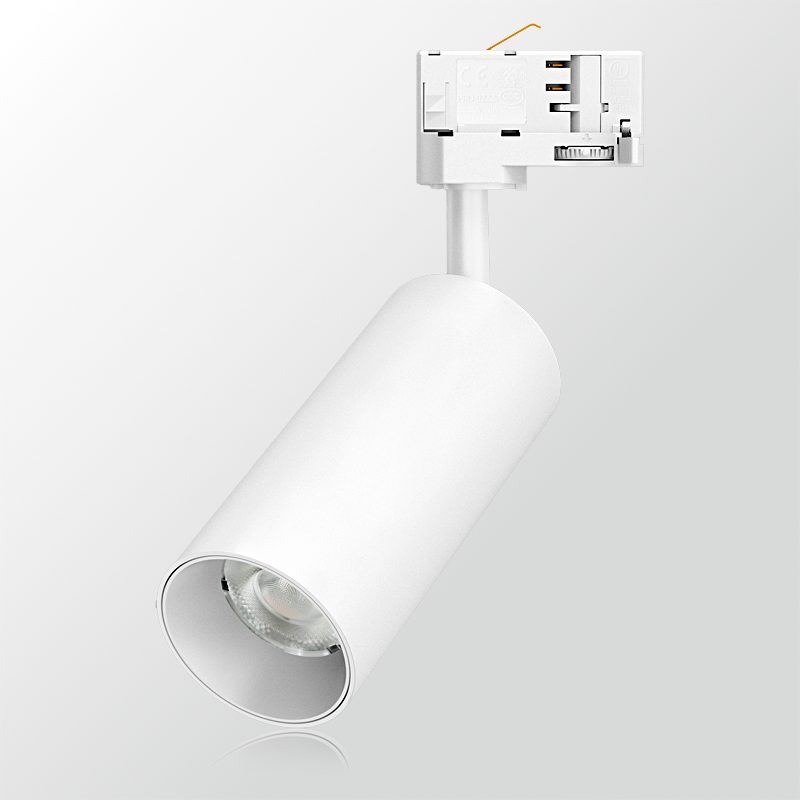

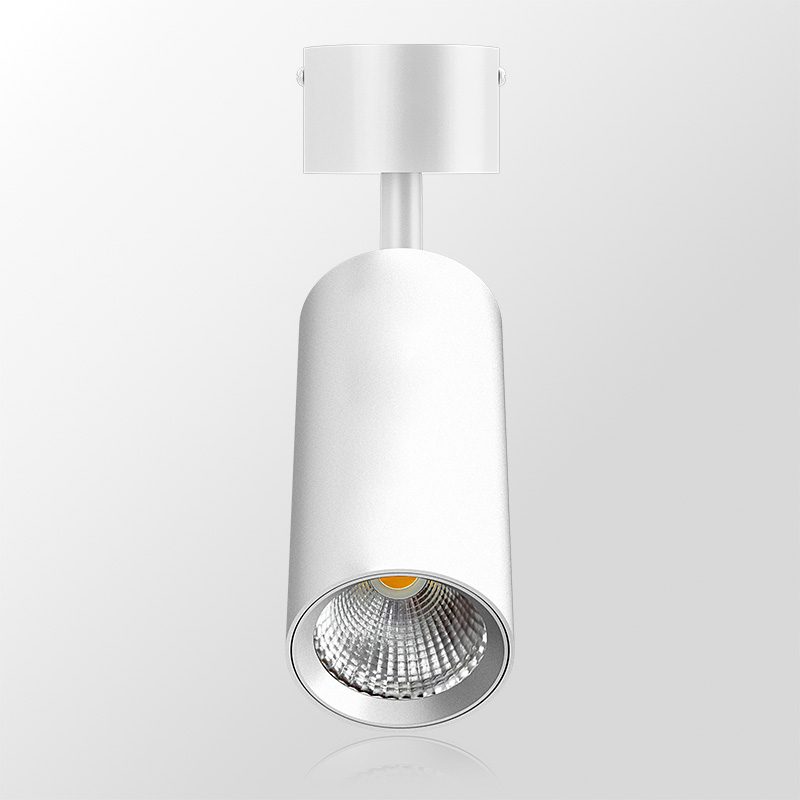

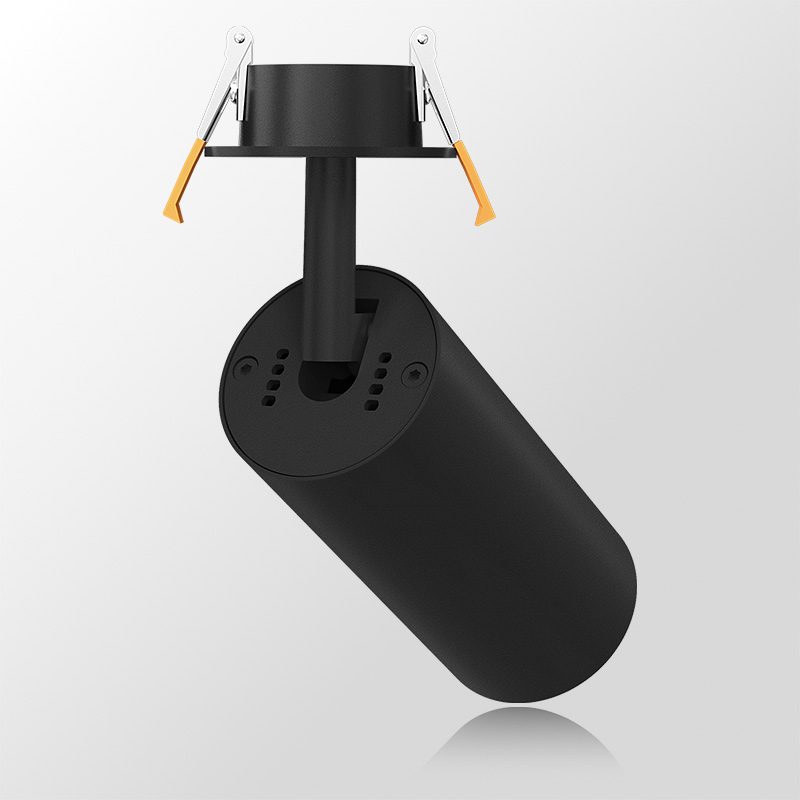

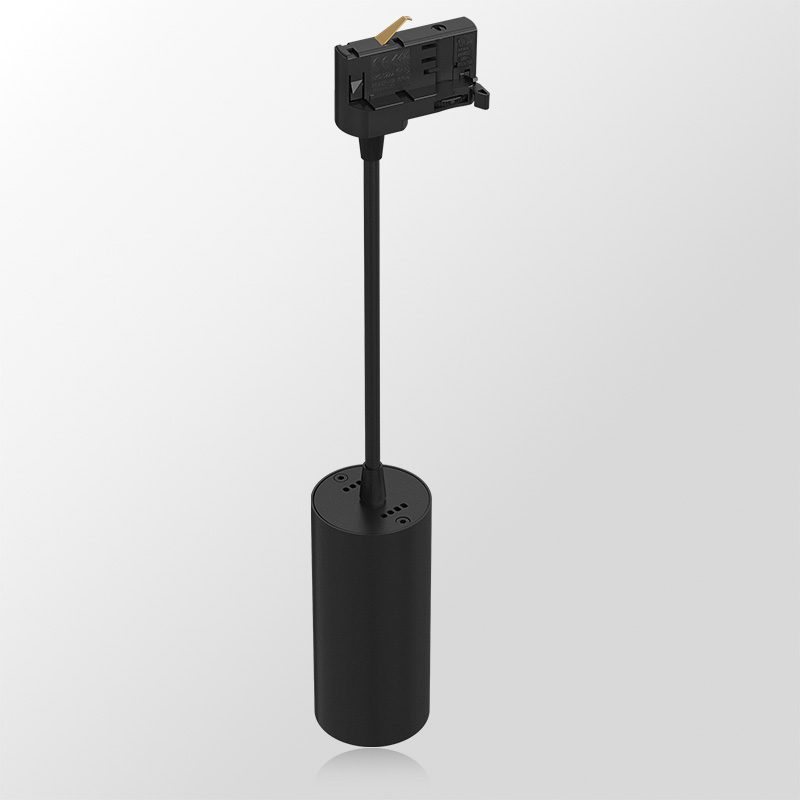

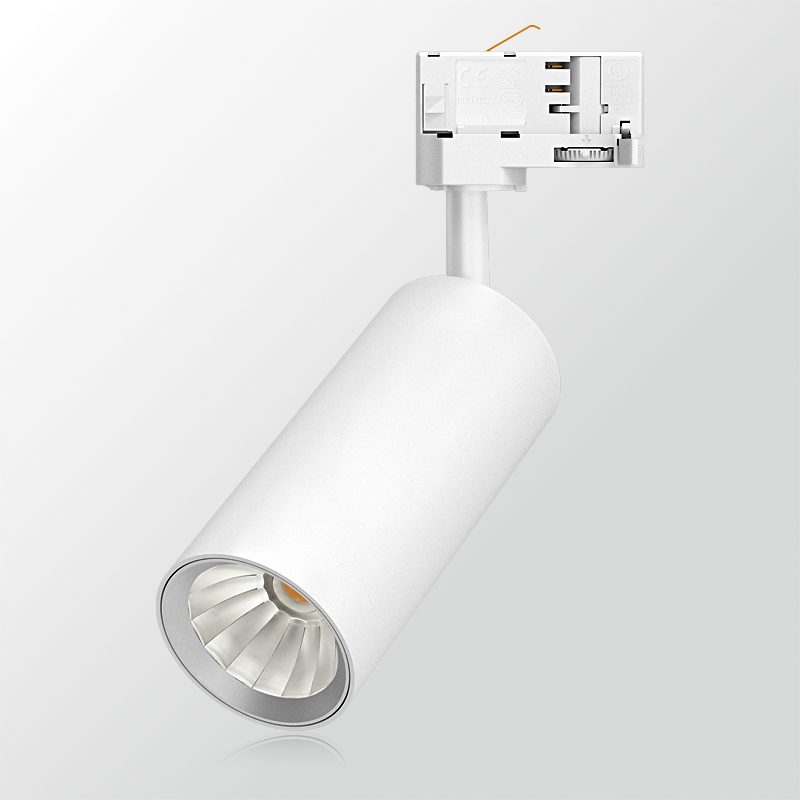

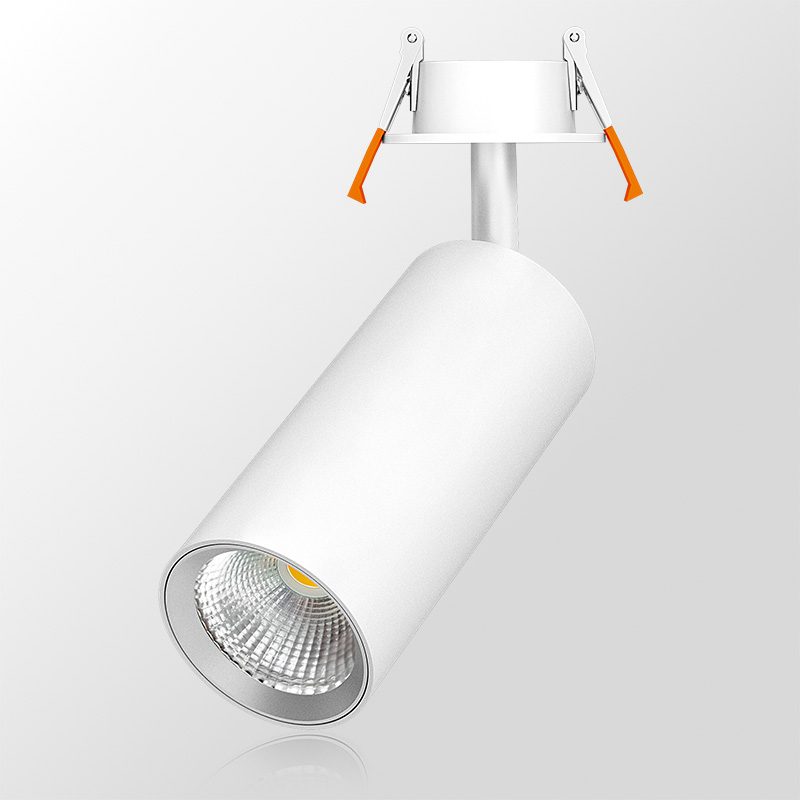

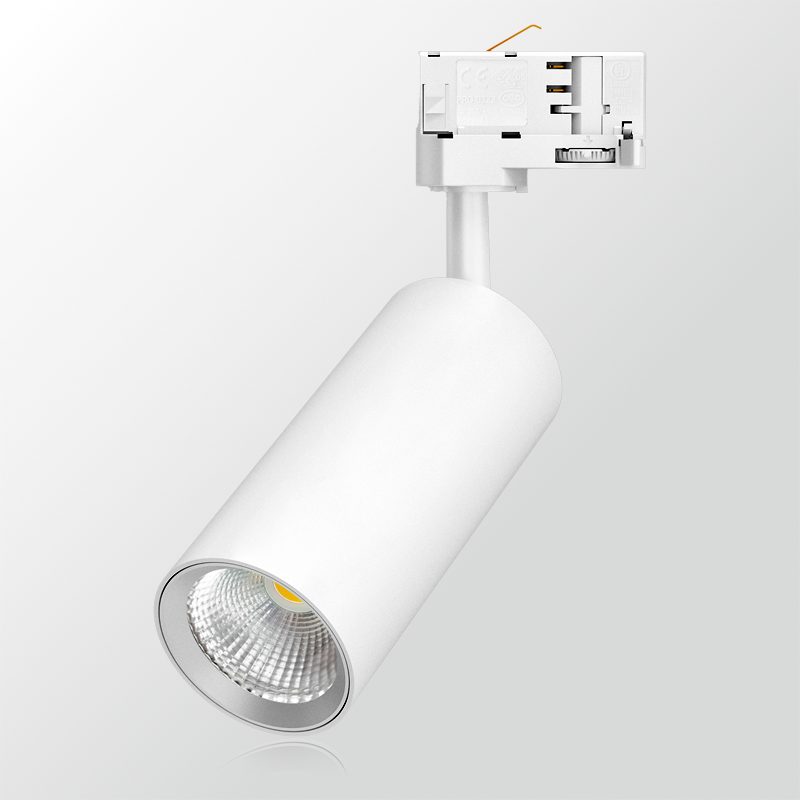

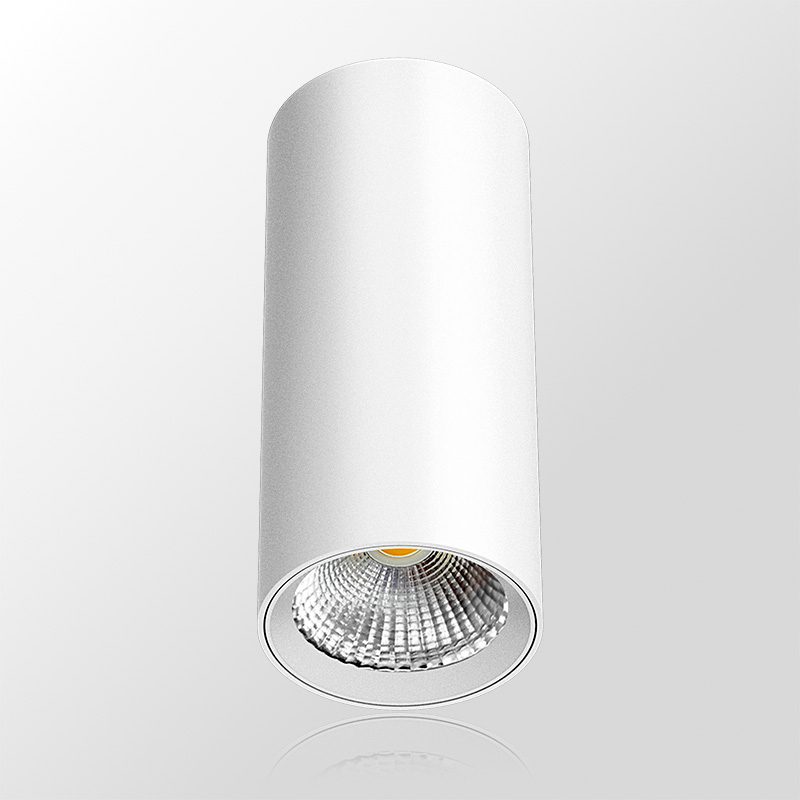

Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features
- Two module diameters: D62 and D85
- Two body lengths per diameter for different drivers
- Seven installation versions from one module
- Interchangeable optics — lens or reflector
- Front ring available in different colours
- Beam angle 15° / 24° / 38° / 60°
- Anti-glare design, UGR<19
- Single colour, tunable white, dim to warm, tri-colour
- 1-phase and 3-phase track adapters
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Module sizes | D62 mm, D85 mm |
|---|---|
| Body length | D62 × 140 / 185 mm; D85 × 170 / 200 mm |
| Wattage | 10–35 W (integrated, surface), 10–40 W (intrack, recessed) |
| Optics | Lens or reflector, interchangeable |
| Beam angle | 15° / 24° / 38° / 60° |
| CCT | 2200–4000 K single colour; tunable white 2700–6500 K |
| CRI | 80+ / 90+ / 95+ / 98+ |
| SDCM | <3 |
| UGR | <19 |
| Installation | Integrated, intrack, surface track, recessed track, track pendant, ceiling pendant, surface downlight |
| Track phase | 1-phase and 3-phase adapters |
| Warranty | 5 years |
Product list
D62 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-10W-F1M | 10 W | DC36V | 250 mA | Up to 130 lm/W | D62 × 140 / 185 mm |
| LX-TL-15W-F1M | 15 W | DC36V | 350 mA | Up to 130 lm/W | D62 × 140 / 185 mm |
| LX-TL-20W-F1M | 20 W | DC36V | 500 mA | Up to 130 lm/W | D62 × 140 / 185 mm |
D85 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-25W-F1M | 25 W | DC36V | 600 mA | Up to 130 lm/W | D85 × 170 / 200 mm |
| LX-TL-30W-F1M | 30 W | DC36V | 700/750 mA | Up to 130 lm/W | D85 × 170 / 200 mm |
| LX-TL-35W-F1M | 35 W | DC36V | 800 mA | Up to 130 lm/W | D85 × 170 / 200 mm |
| LX-TL-40W-F1M | 40 W | DC36V | 950 mA | Up to 130 lm/W | D85 × 170 / 200 mm |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Application scenarios
Illustrative scene — representative application.
Which track system
4-Wire system
Three circuits on one run.
2-Wire system
Single-circuit installations.
