07 Series
A micro 48V rail with a 7 mm visible opening — five mounting conditions, one module interface.

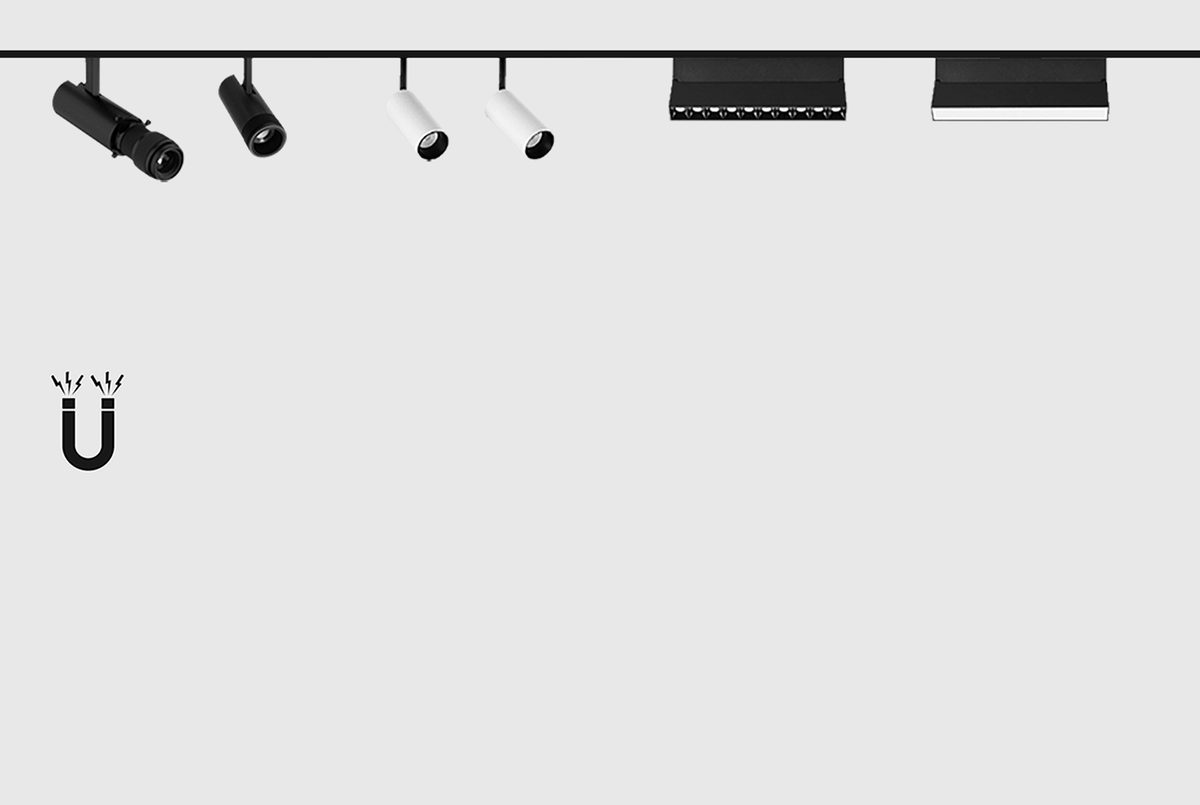

The 07 Series is the micro end of the 48V platform: a 12.8 mm channel behind a 7.4 mm opening, so the ceiling reads as a single line. Five mounting conditions share one magnetic module interface — surface, suspended, pre-embedded, recessed narrow trim and recessed — so the profile follows the ceiling detail, not the light. Modules reposition along the run without rewiring. The range covers flood linear, linear array, cylinder spot, adjustable grille, cut light, pendant cylinder and atmosphere discs, with ON/OFF, Tuya Zigbee, 0–10V and DALI control.
- System voltage
- DC 48V safety voltage
- Visible opening
- 7.4 mm (7 mm nominal)
- Internal channel
- 12.8 mm
- Rail lengths
- 1000 / 2000 / 3000 mm
- Colour temperature
- 3000K / 3500K / 4000K
- CRI
- ≥ 90, SDCM < 3
- Control
- ON/OFF · Tuya Zigbee · 0–10V · DALI
- Finishes
- Black / White standard; gold, orange, antique brass, silver to order
- Ingress protection
- IP20
- Certificates
- CE, RoHS · 50,000 h @ L80
Modules & components (selected):
| Type | Module | Power | Size |
|---|---|---|---|
| Rail | Surface rail | — | W22.2 × H12.8 |

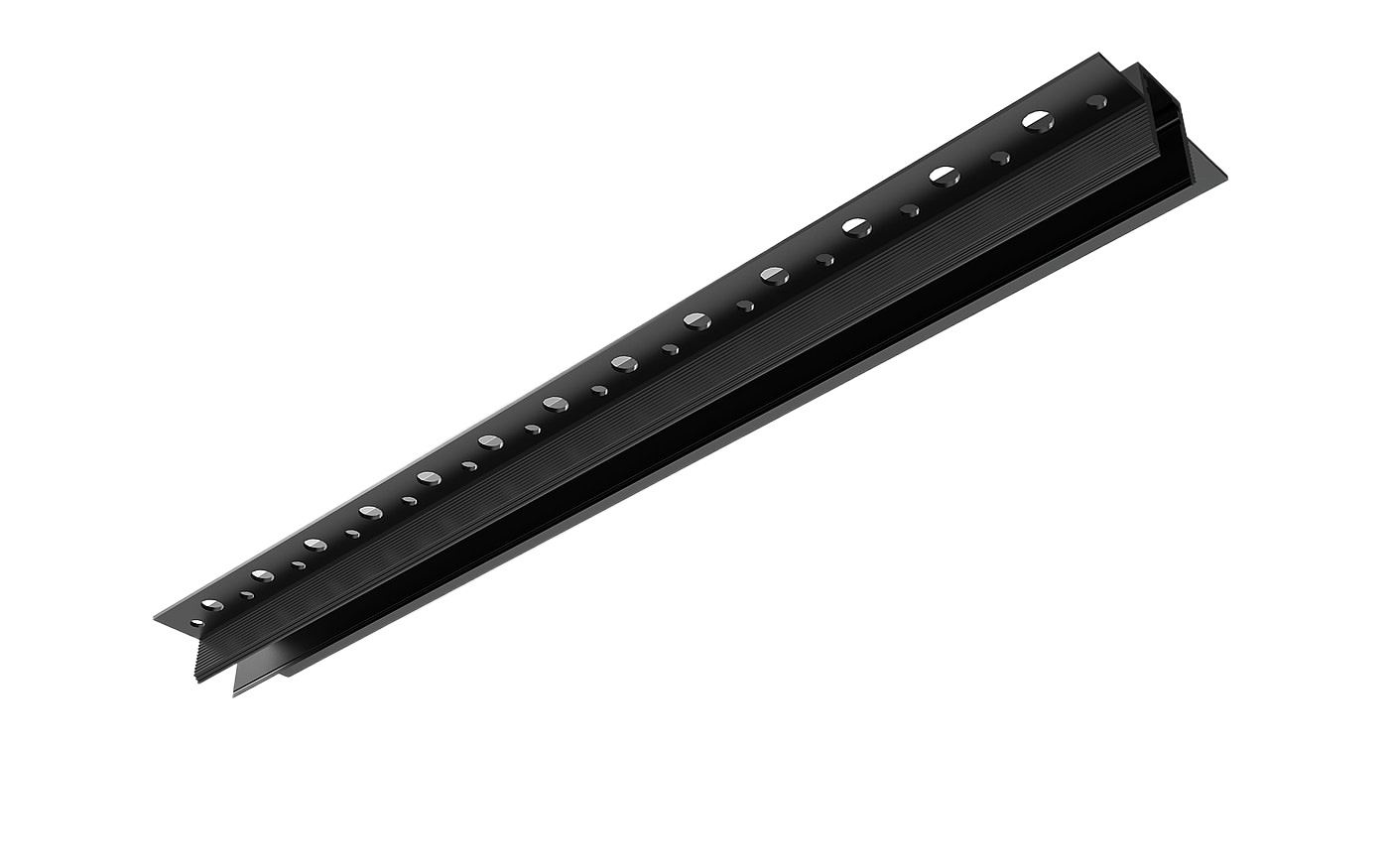

| Rail | Pre-embedded rail | — | W44.0 × D20.1 |
| Rail | Recessed narrow-trim rail | — | W20.8 × H22.2 |
| Rail | Recessed rail | — | W44.0 × D20.1 |
| Rail | Suspended rail | — | W21.2 mm |
| Connector | Track connector & end cover | — | Straight join |

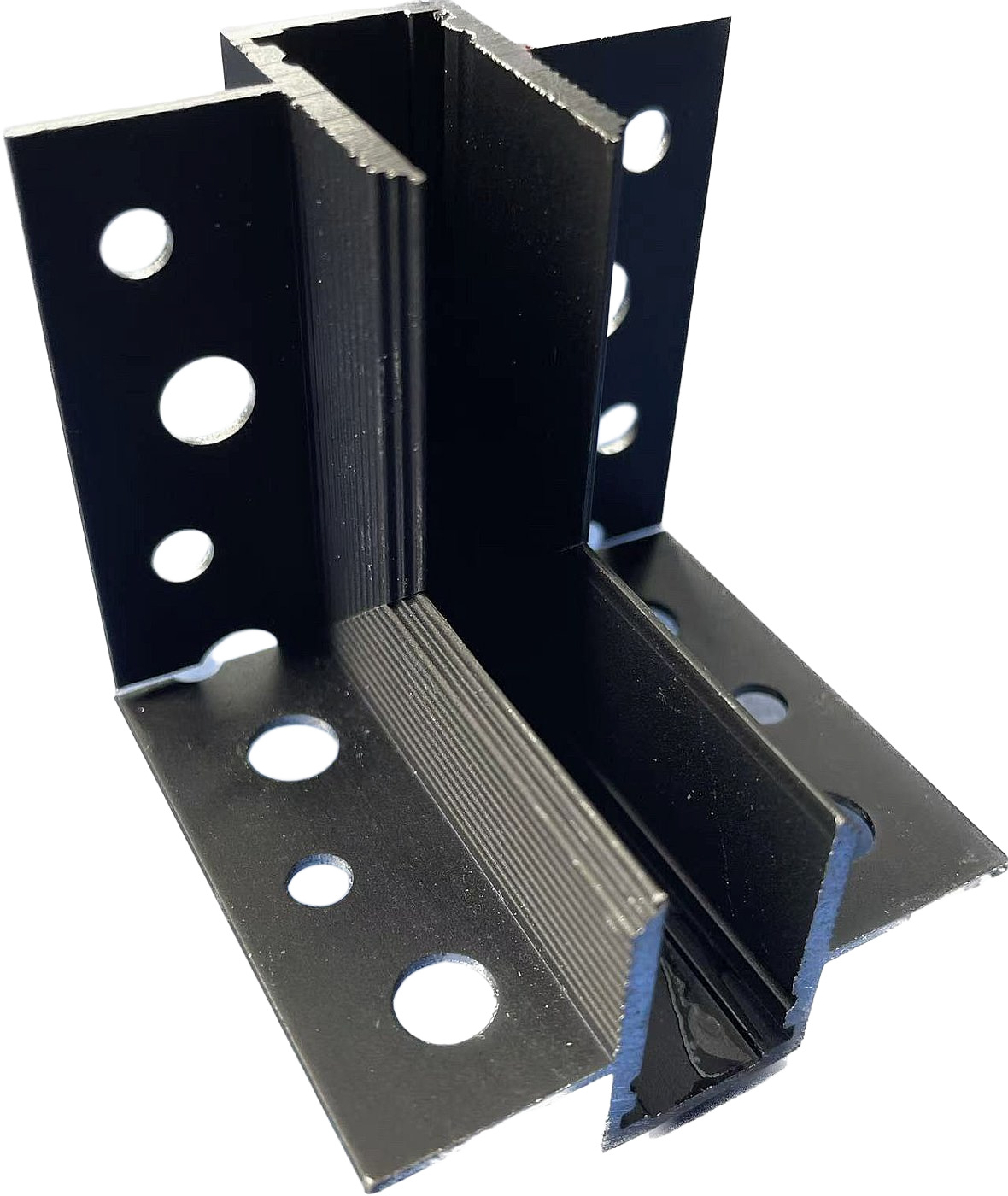

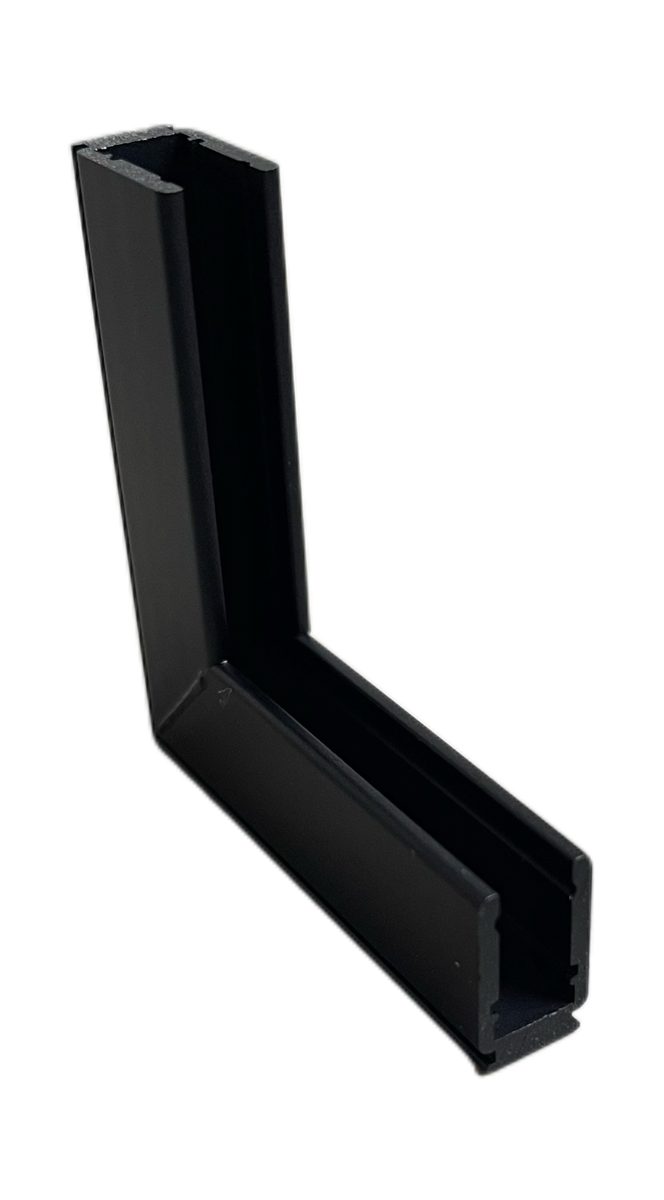

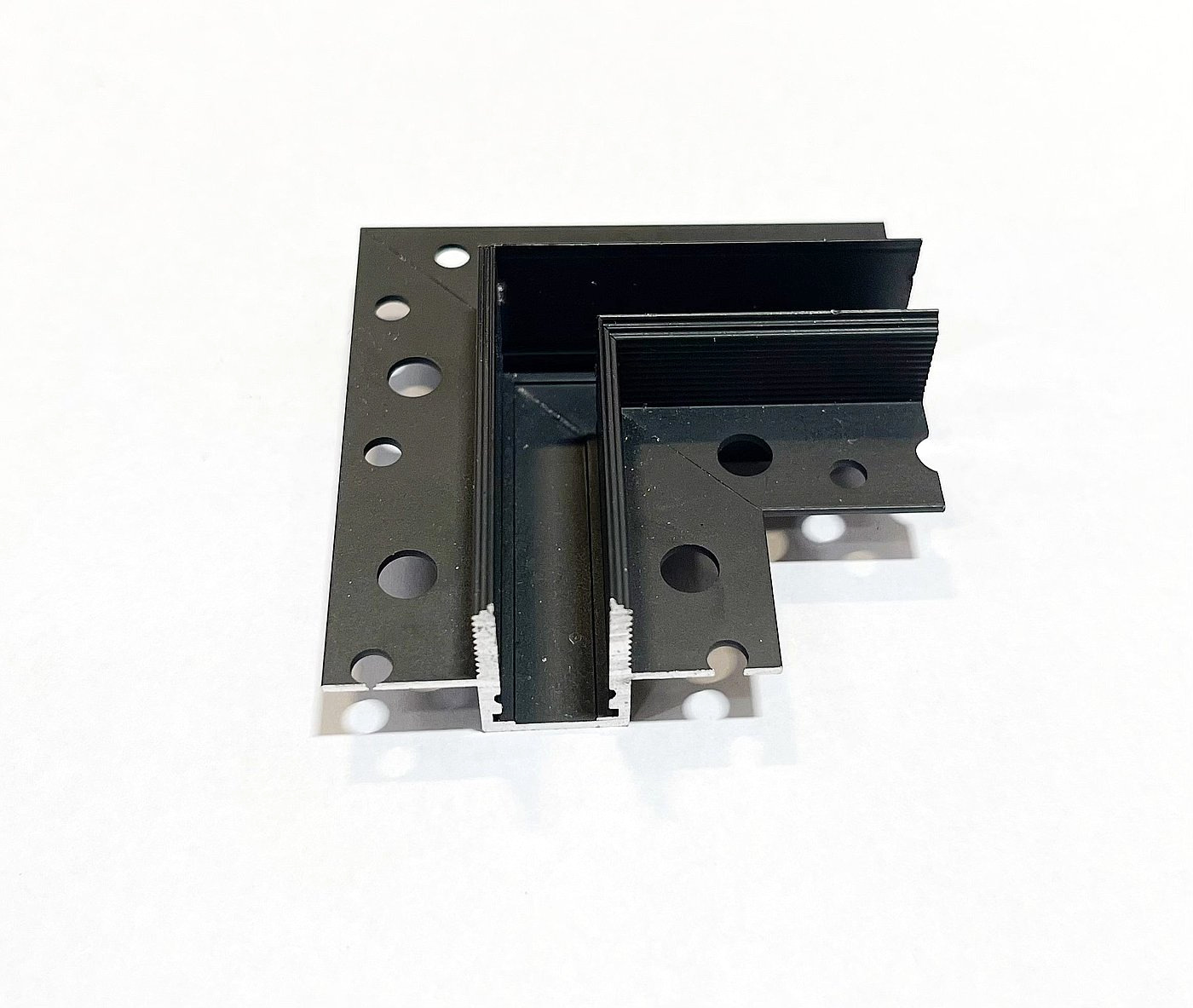

| Connector | Corner set (inner / horizontal / outer) | — | L / T / cross turns |

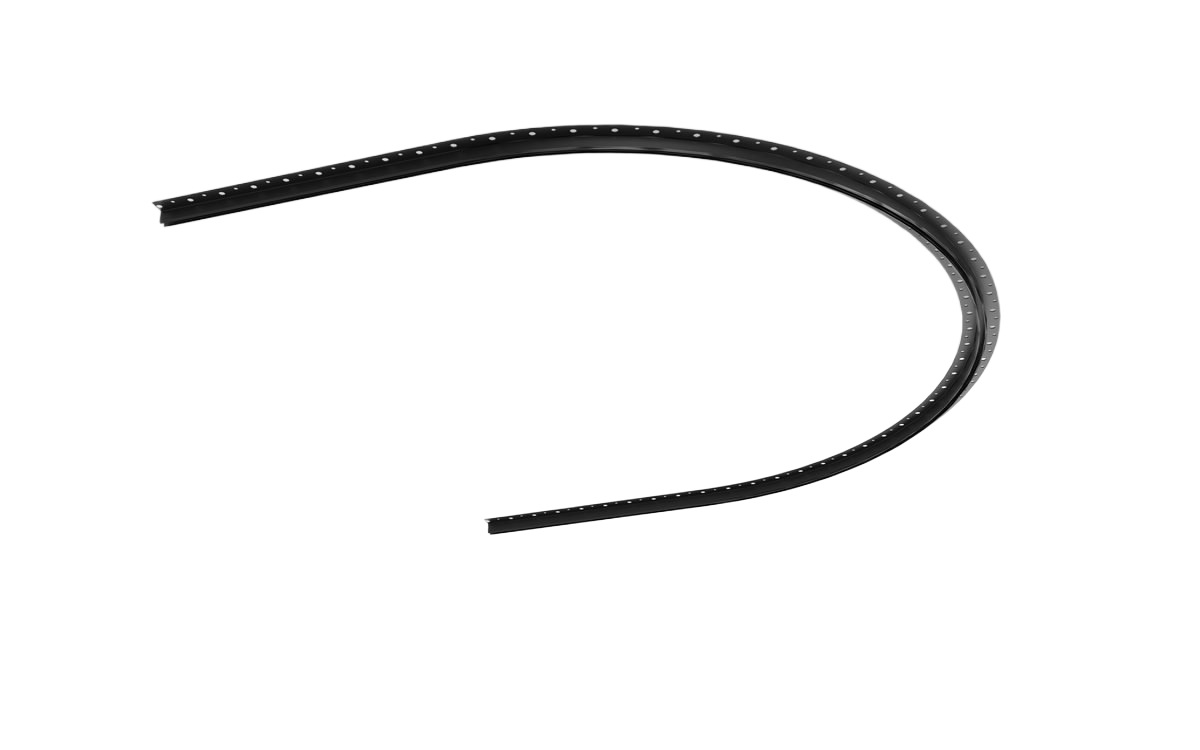

| Connector | Power feeder, corner power & flexible connector | — | Run entry / turns |

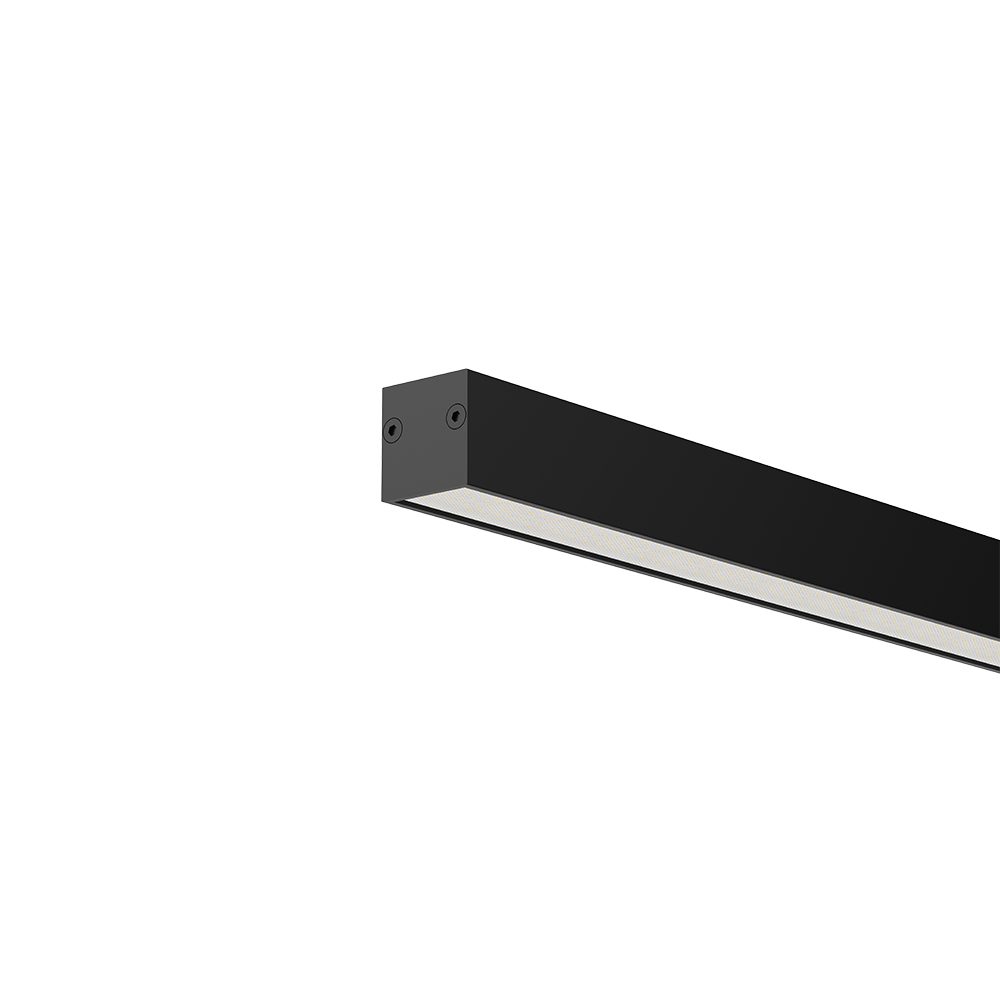

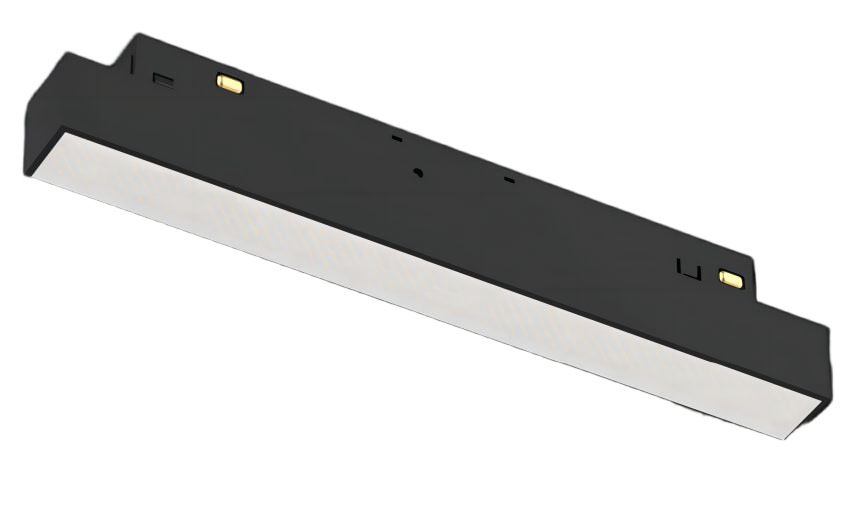

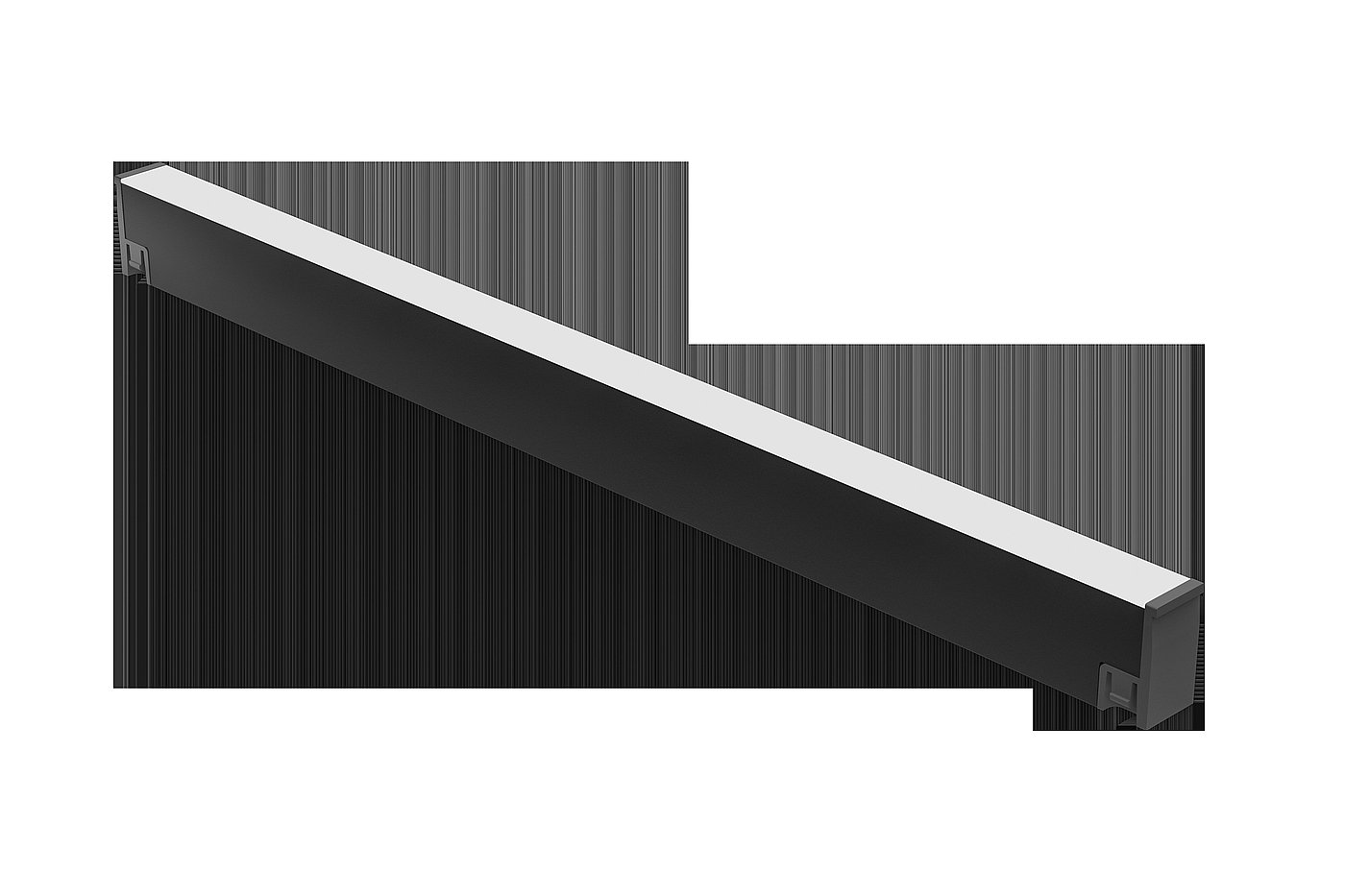

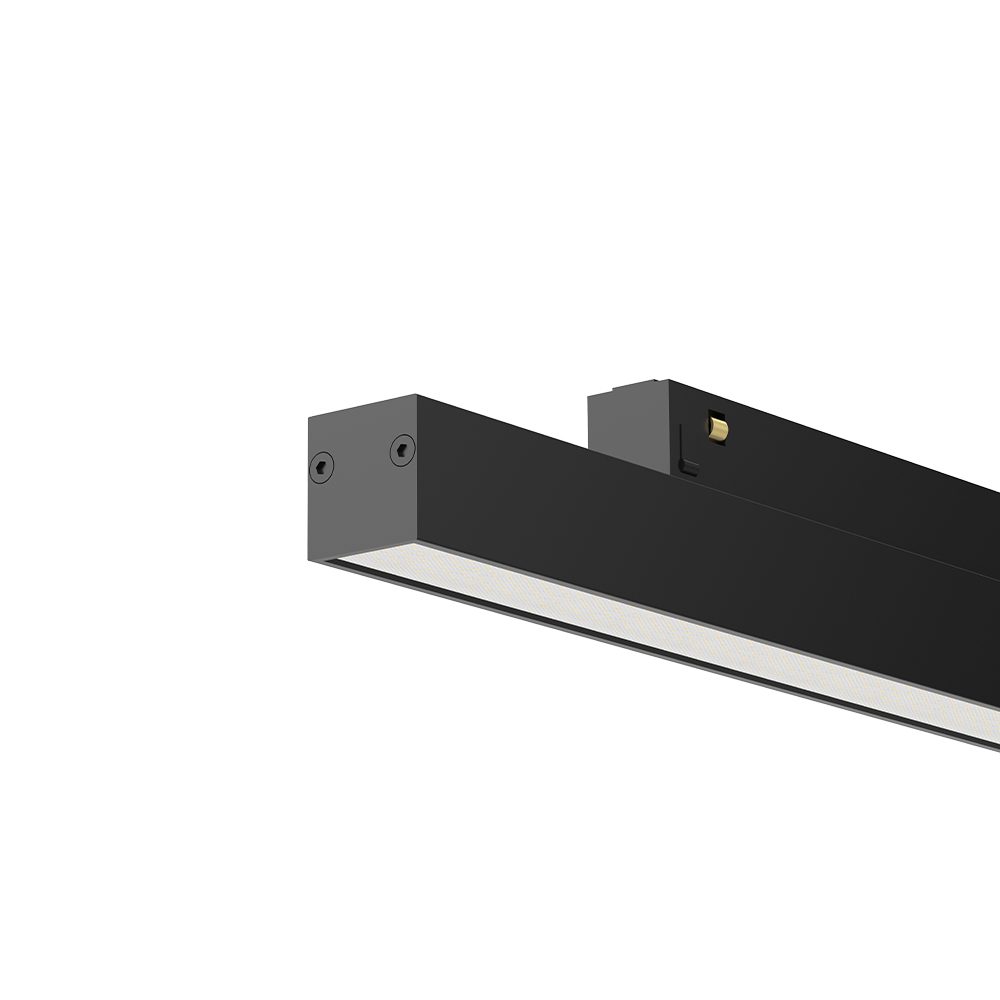

| Module | Flood linear | 6 W | 385 lm, 110° |

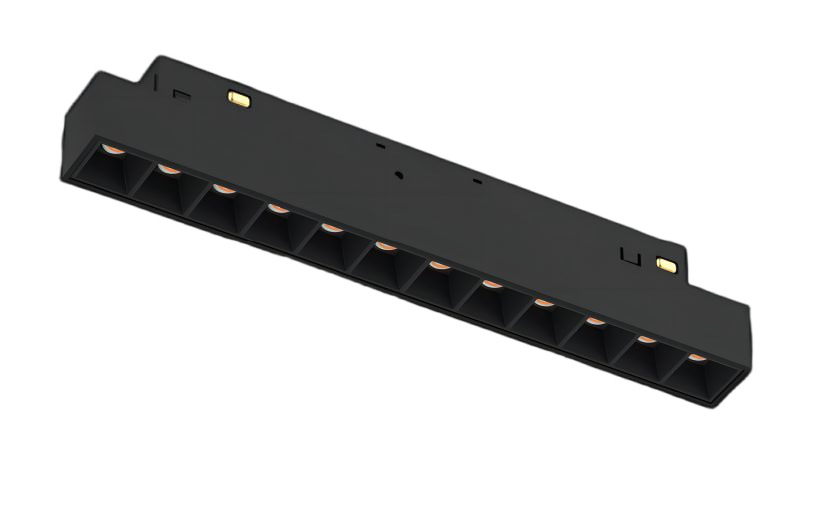

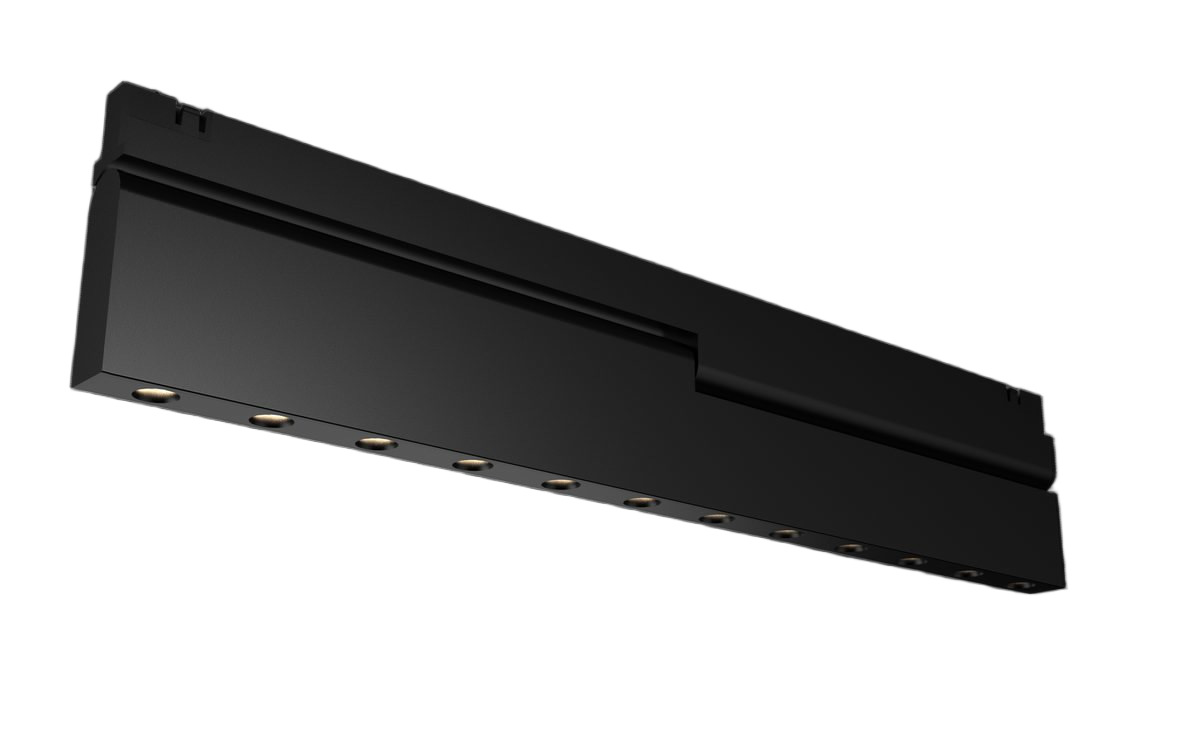

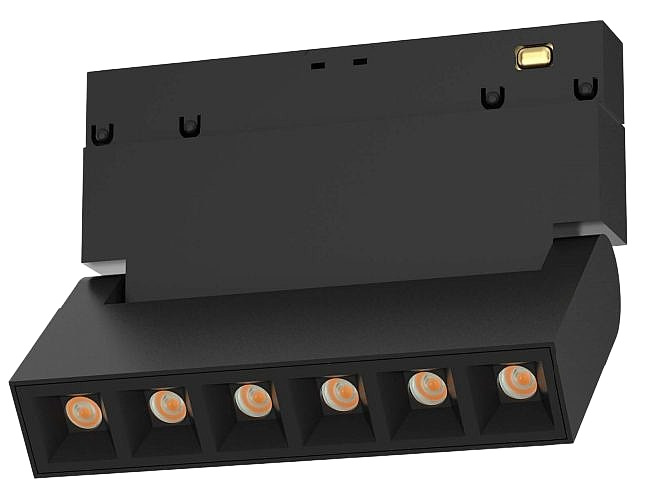

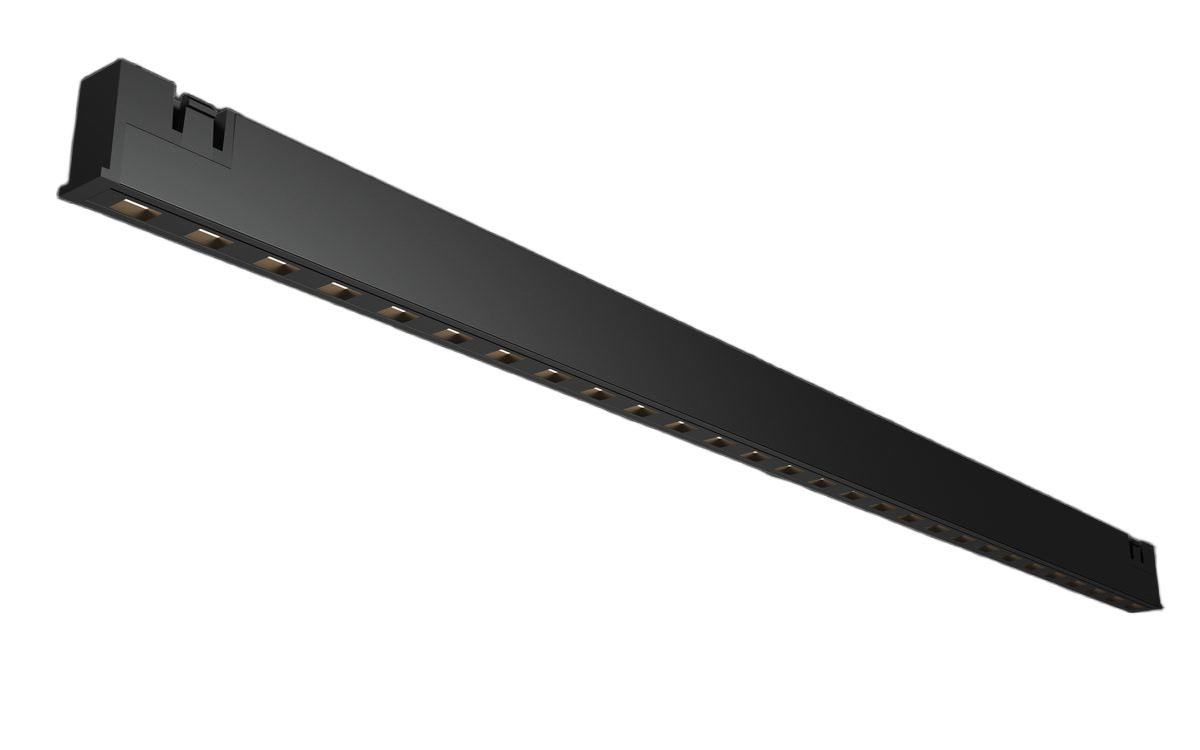

| Module | Linear array | 6 W | 413 lm, 36° / 45° |

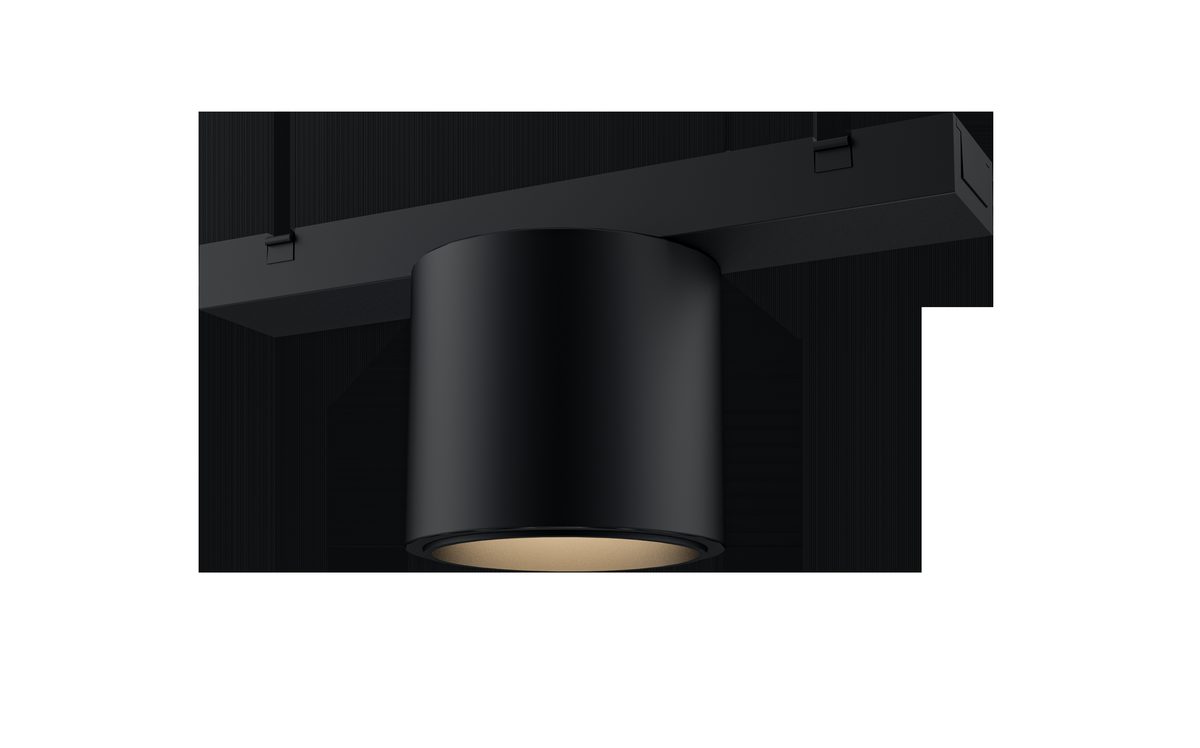

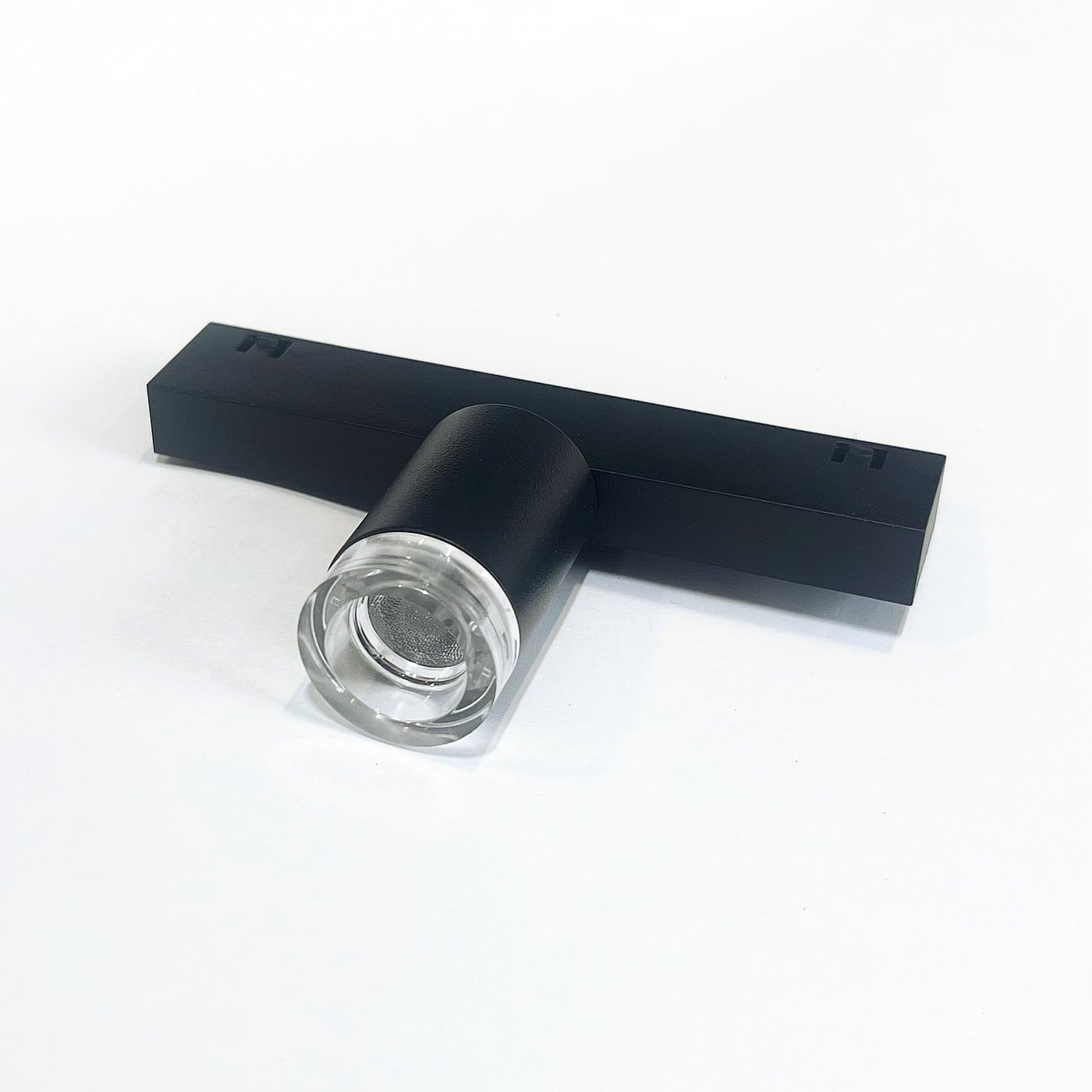

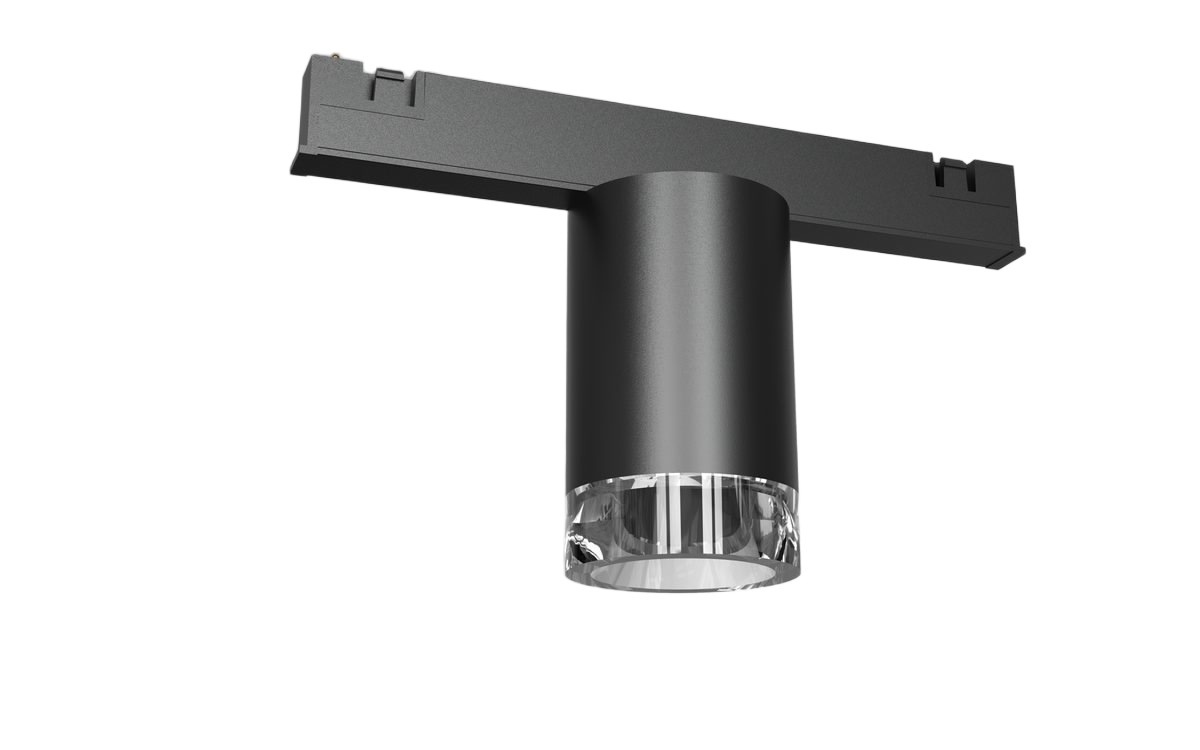

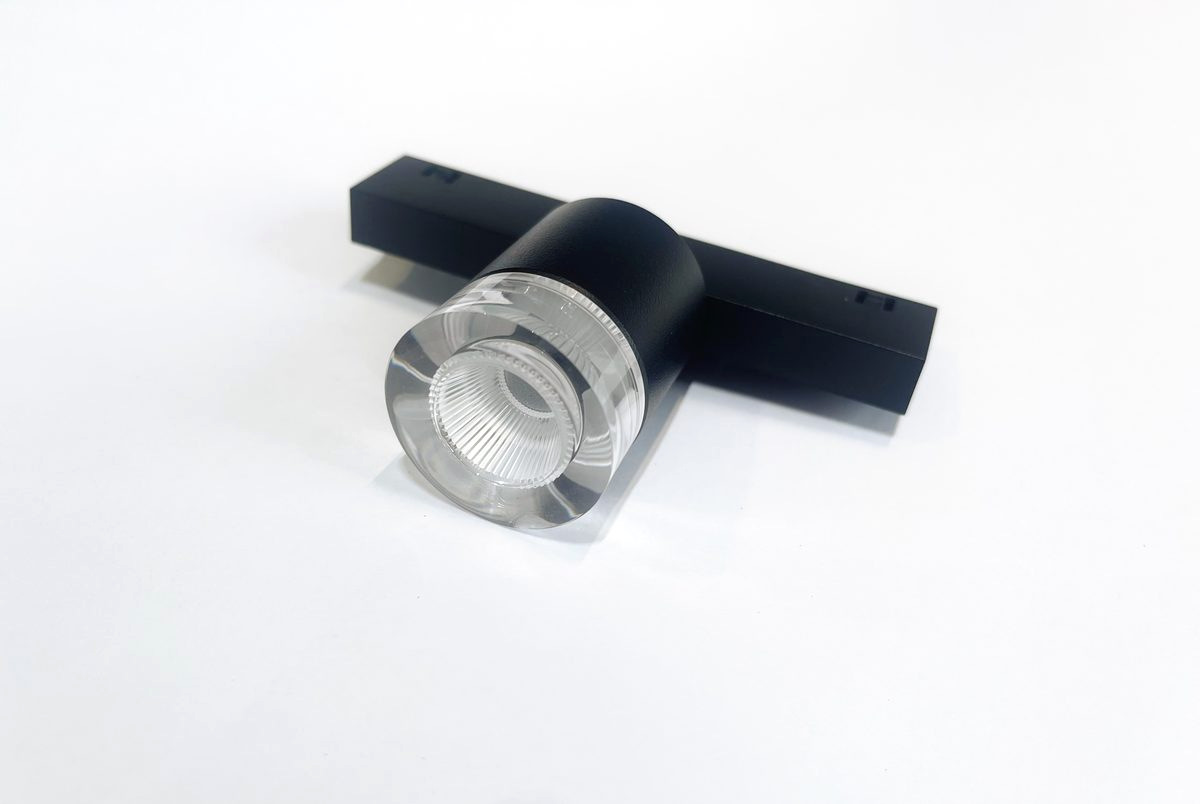

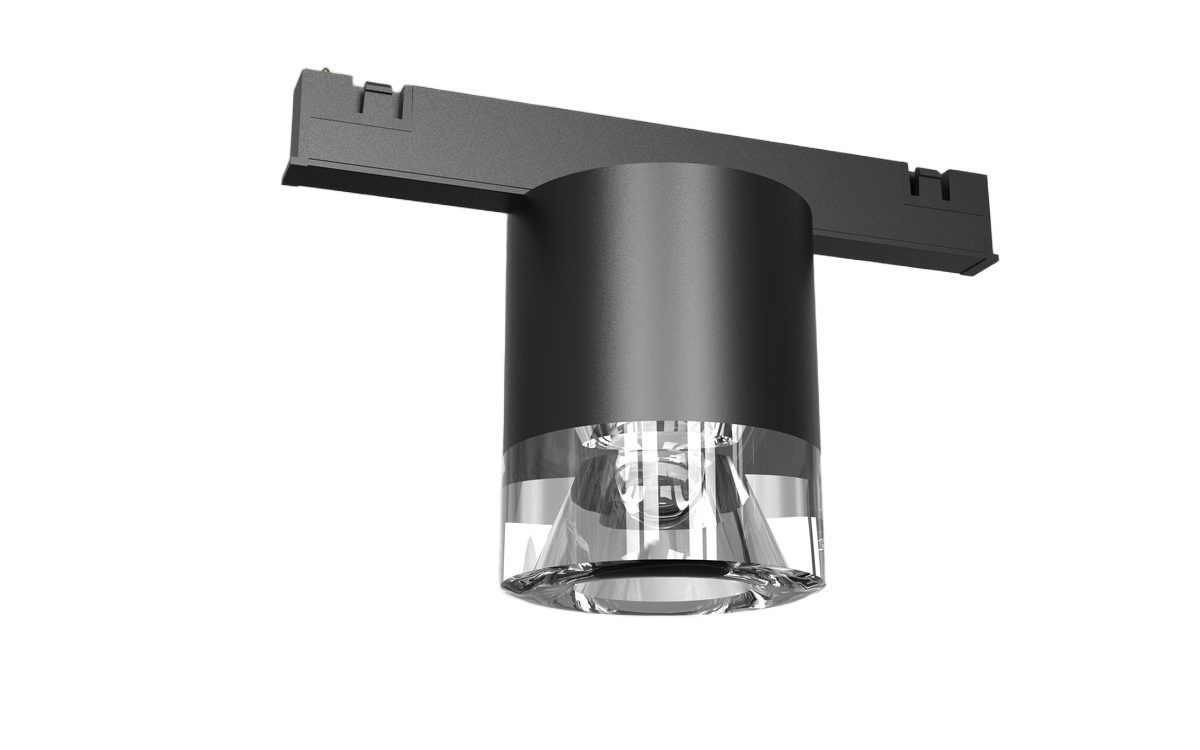

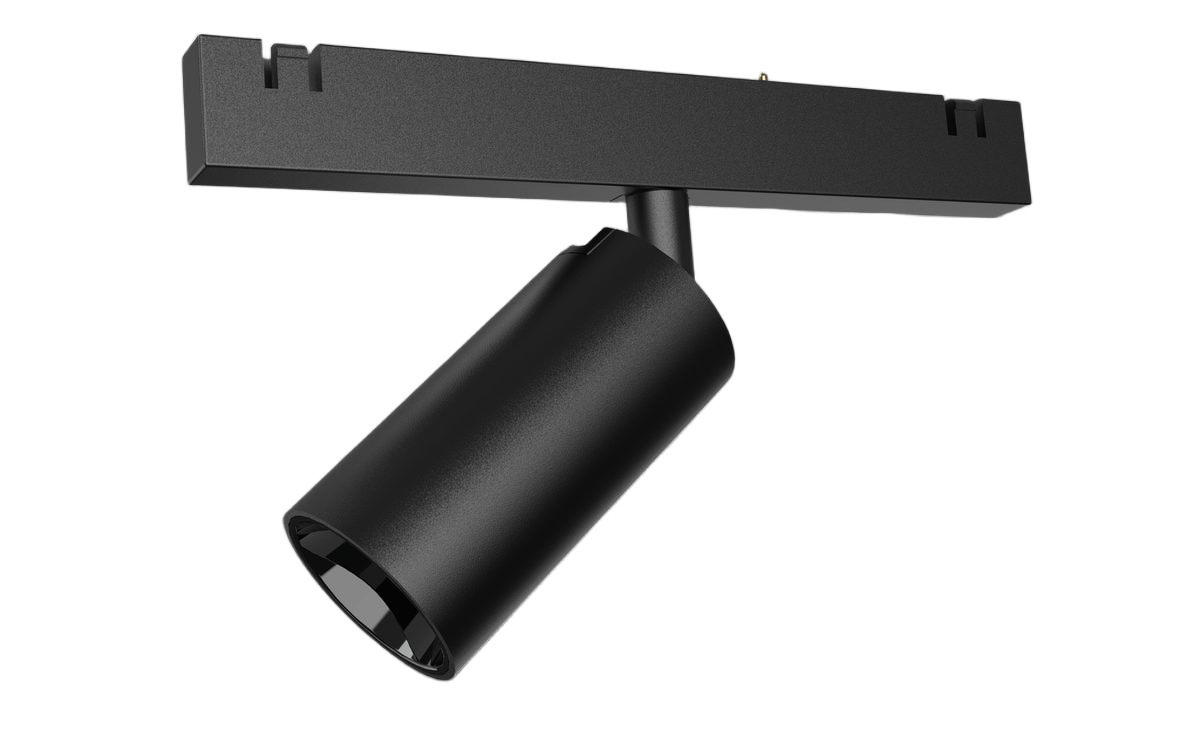

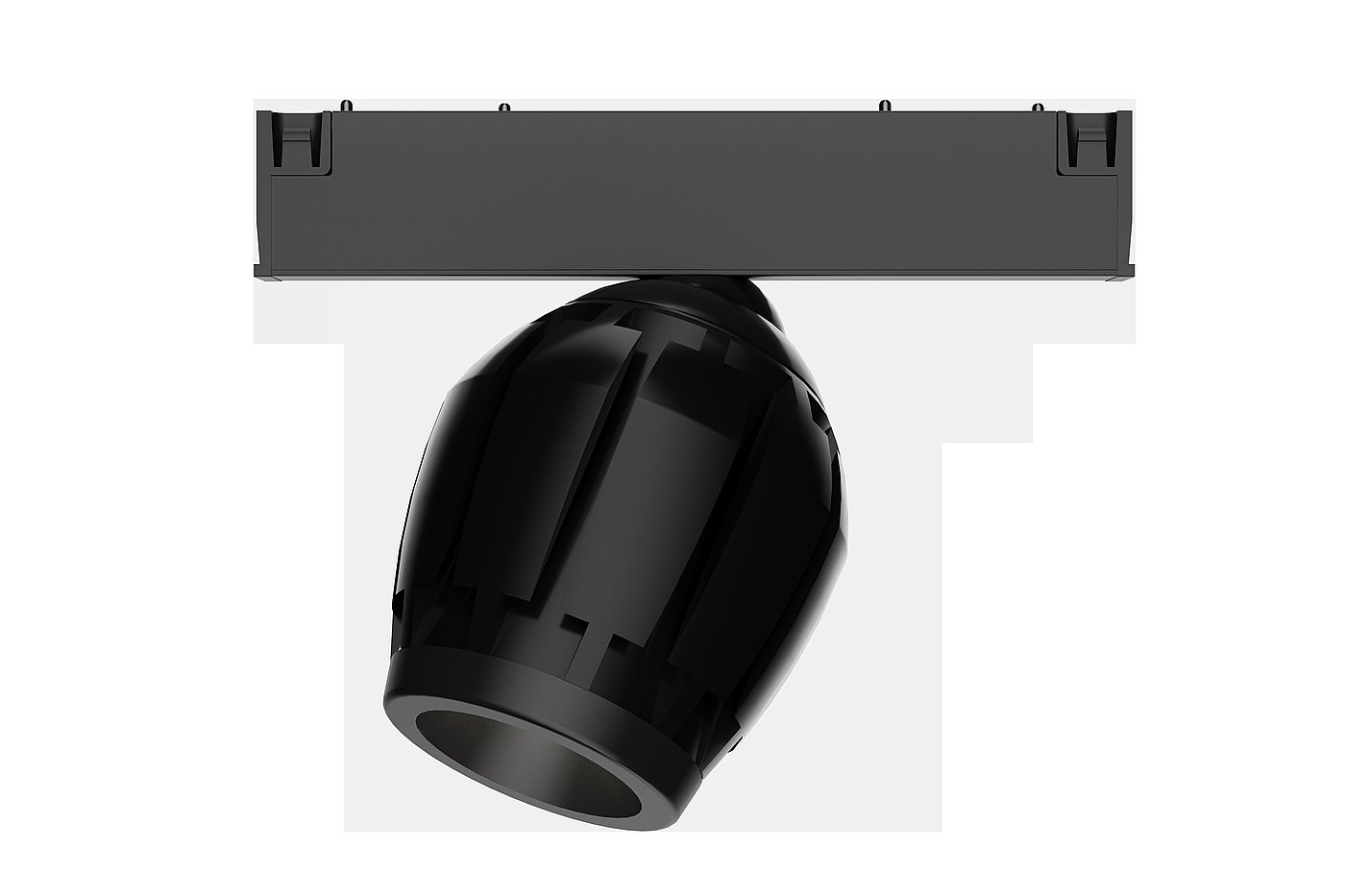

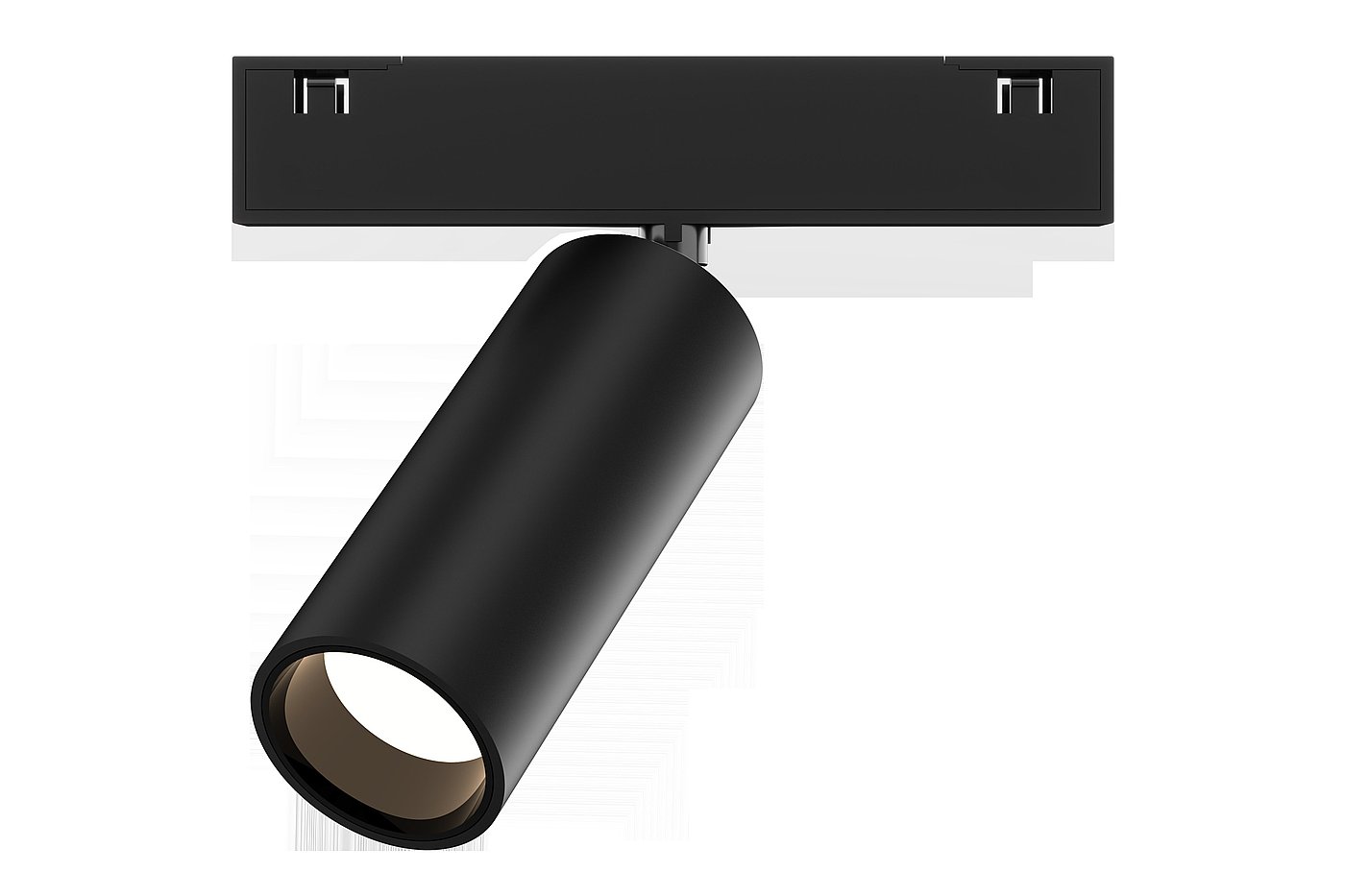

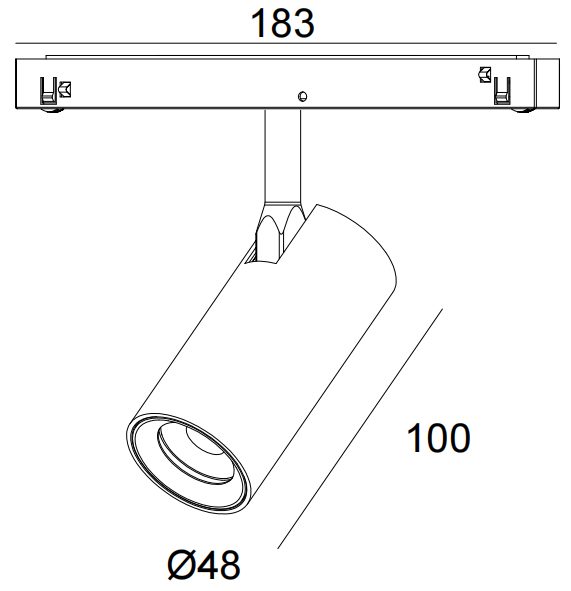

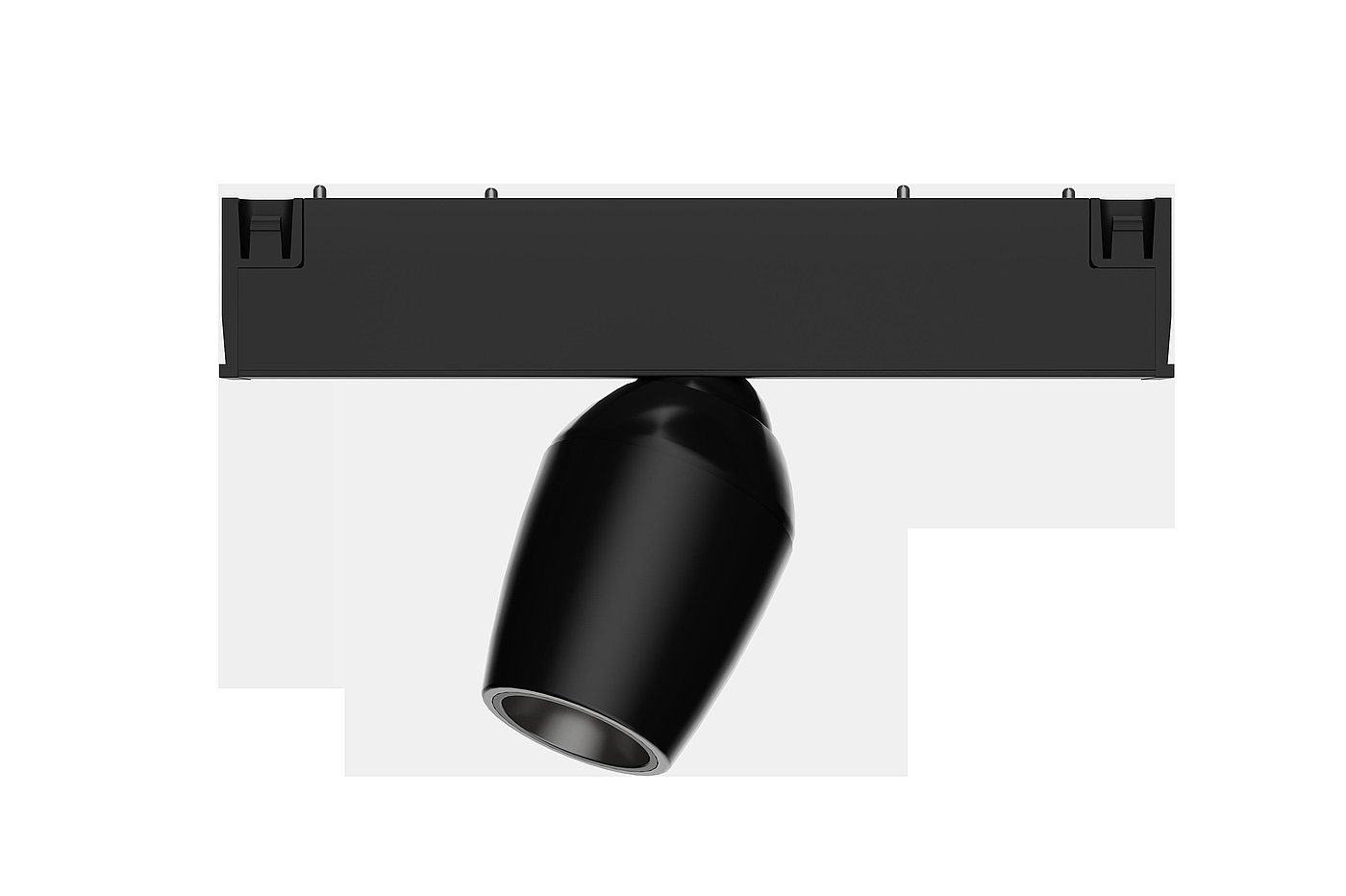

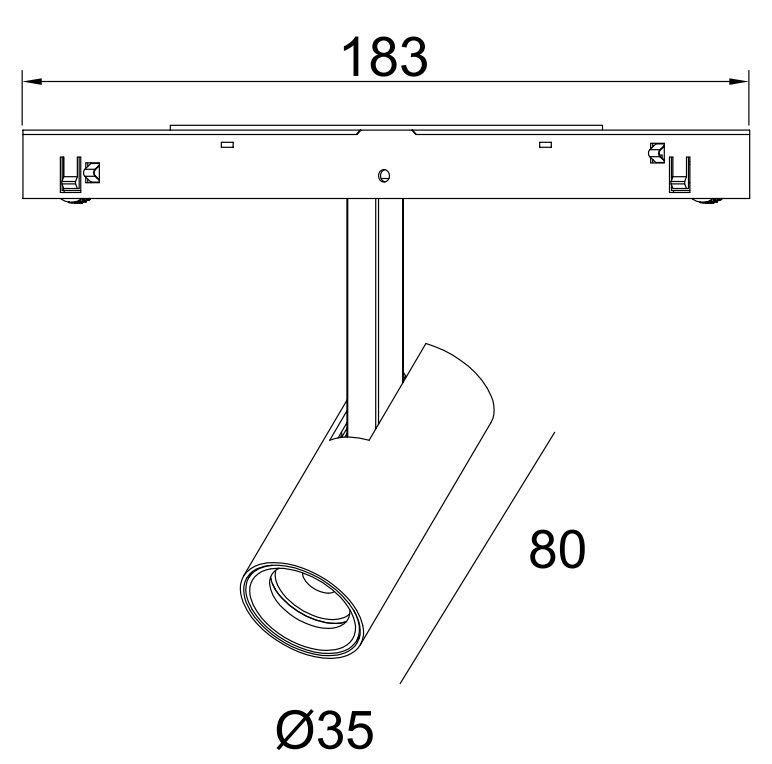

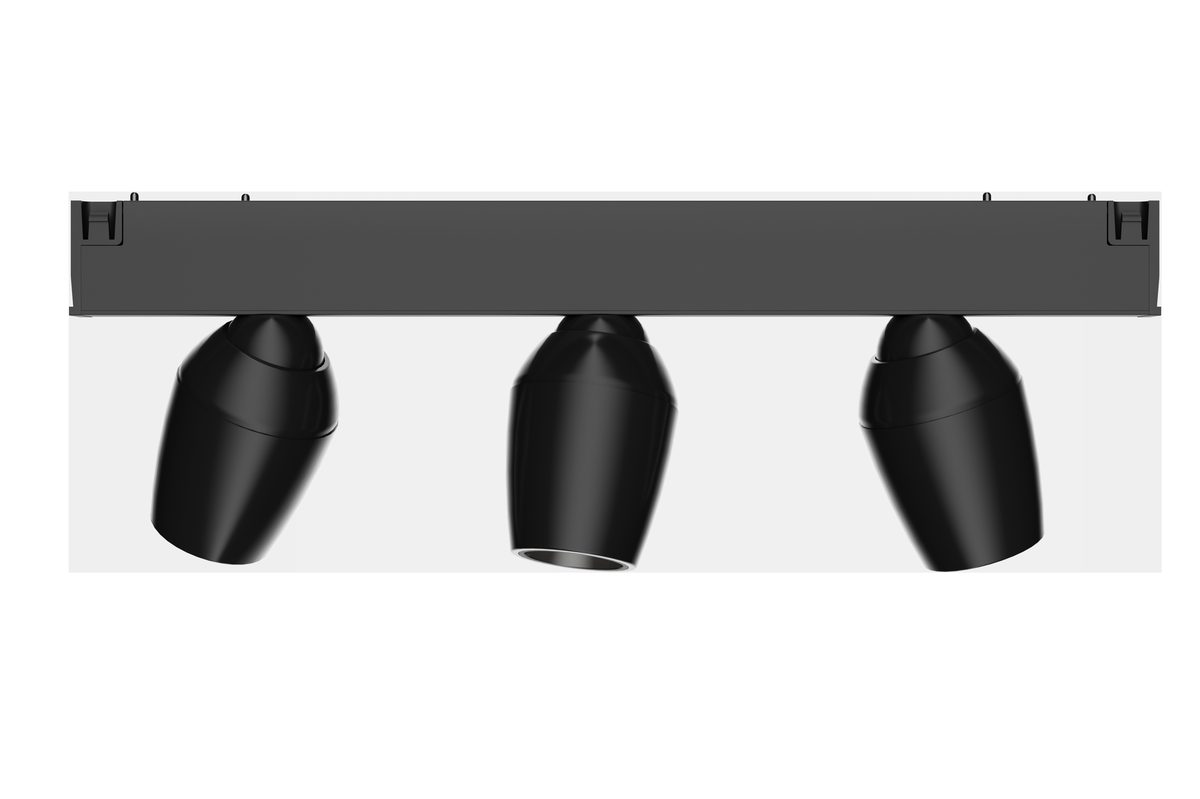

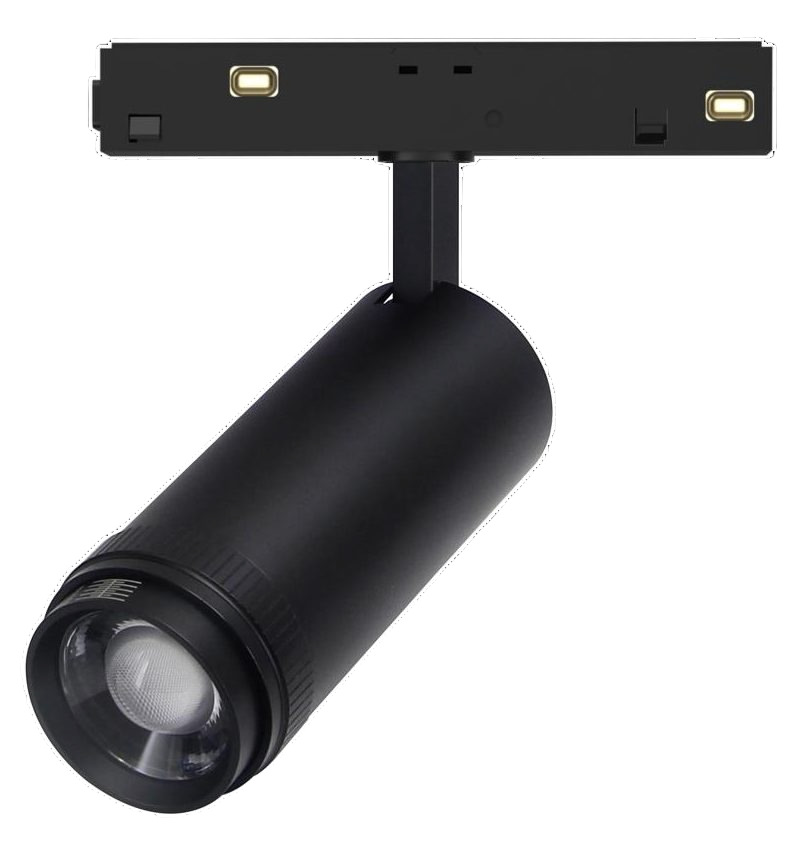

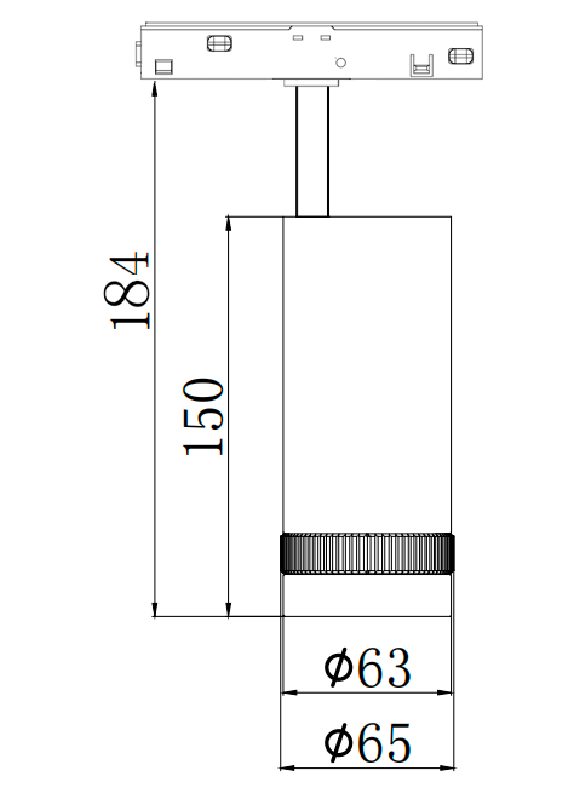

| Module | Cylinder spot | 4/6/15W | 276–1020 lm |

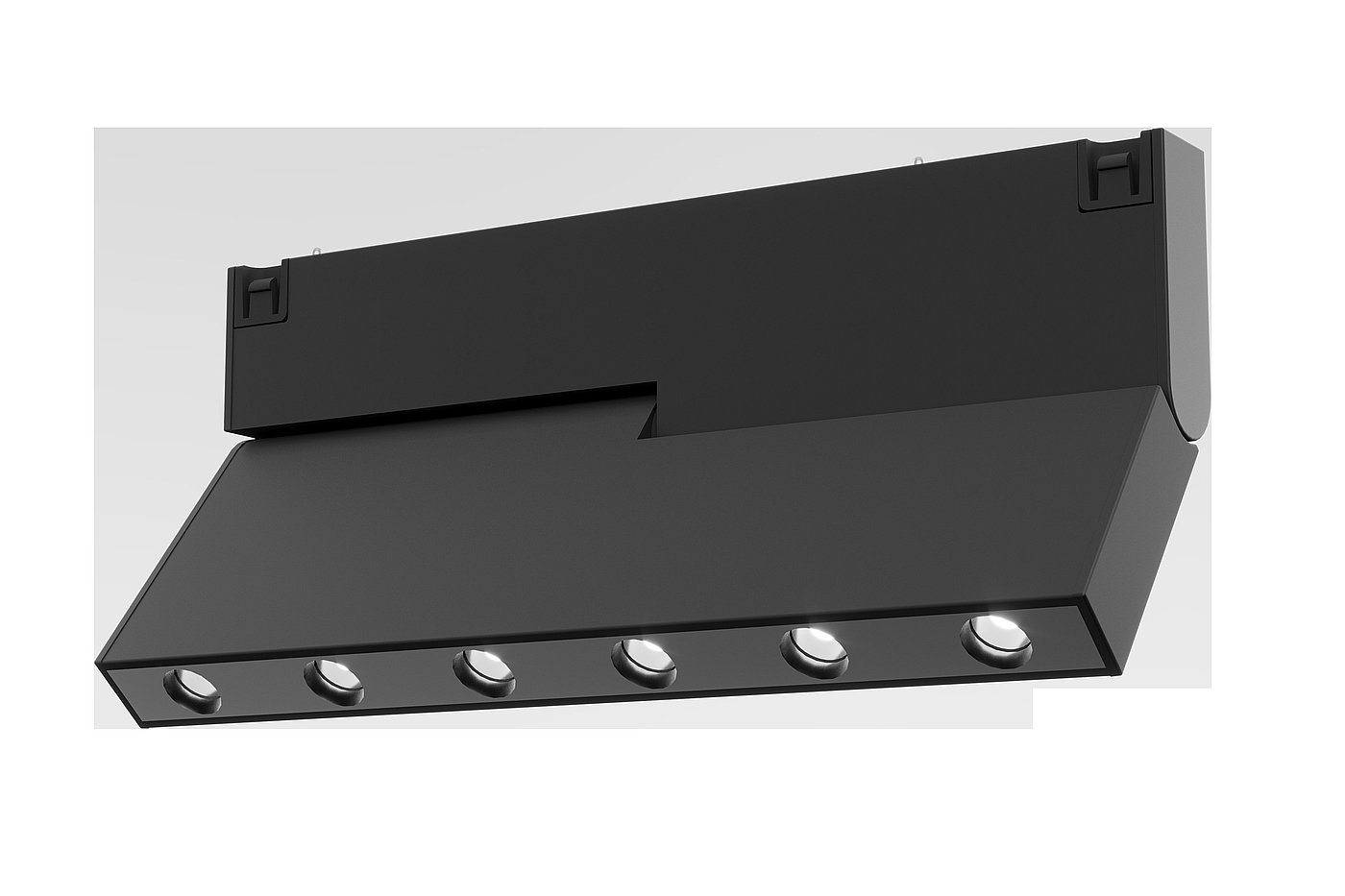

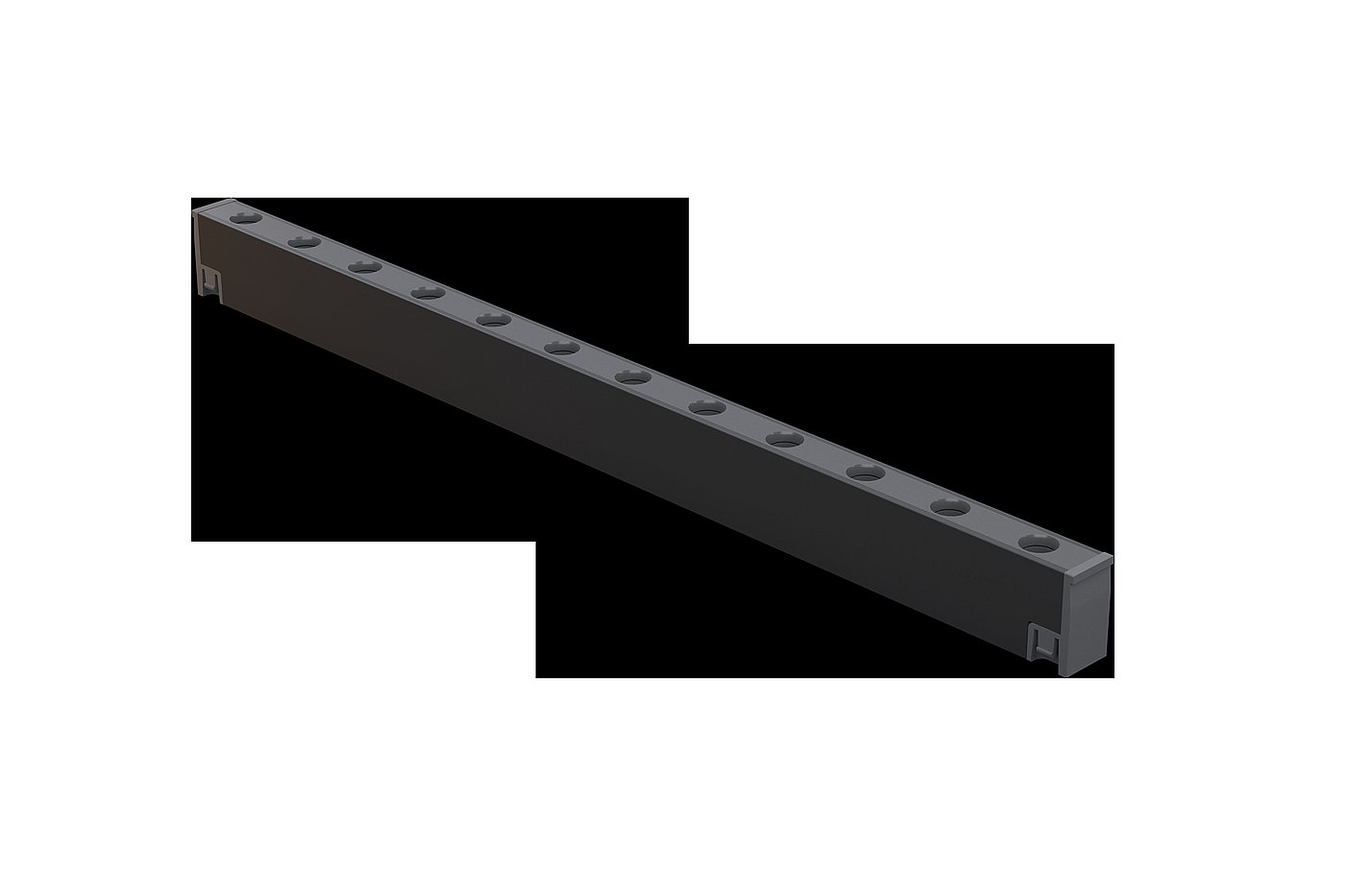

| Module | Adjustable grille | 8/16 W | 561 / 990 lm |

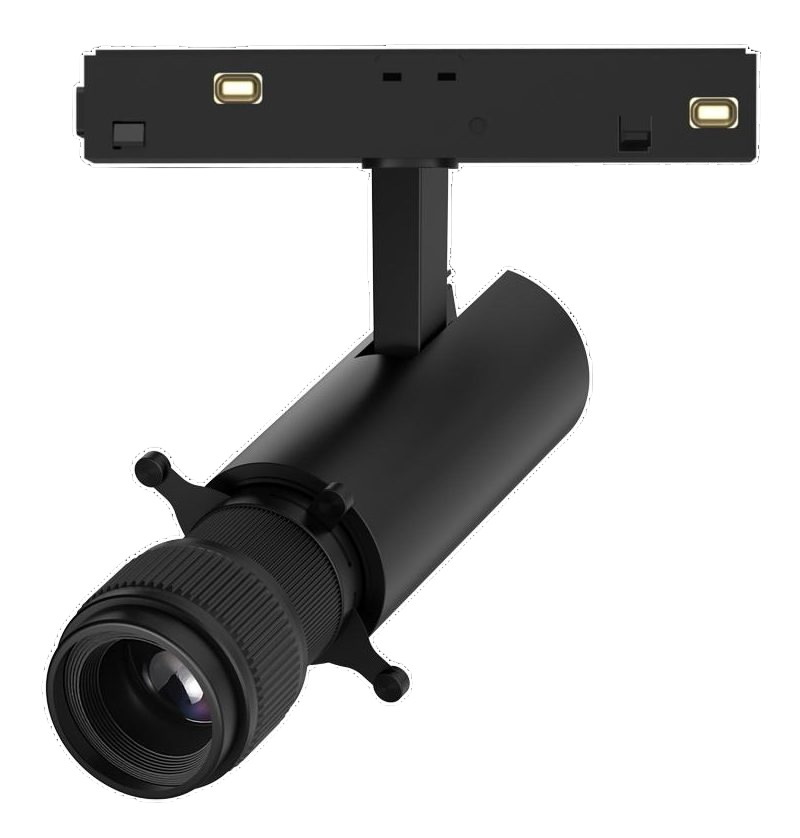

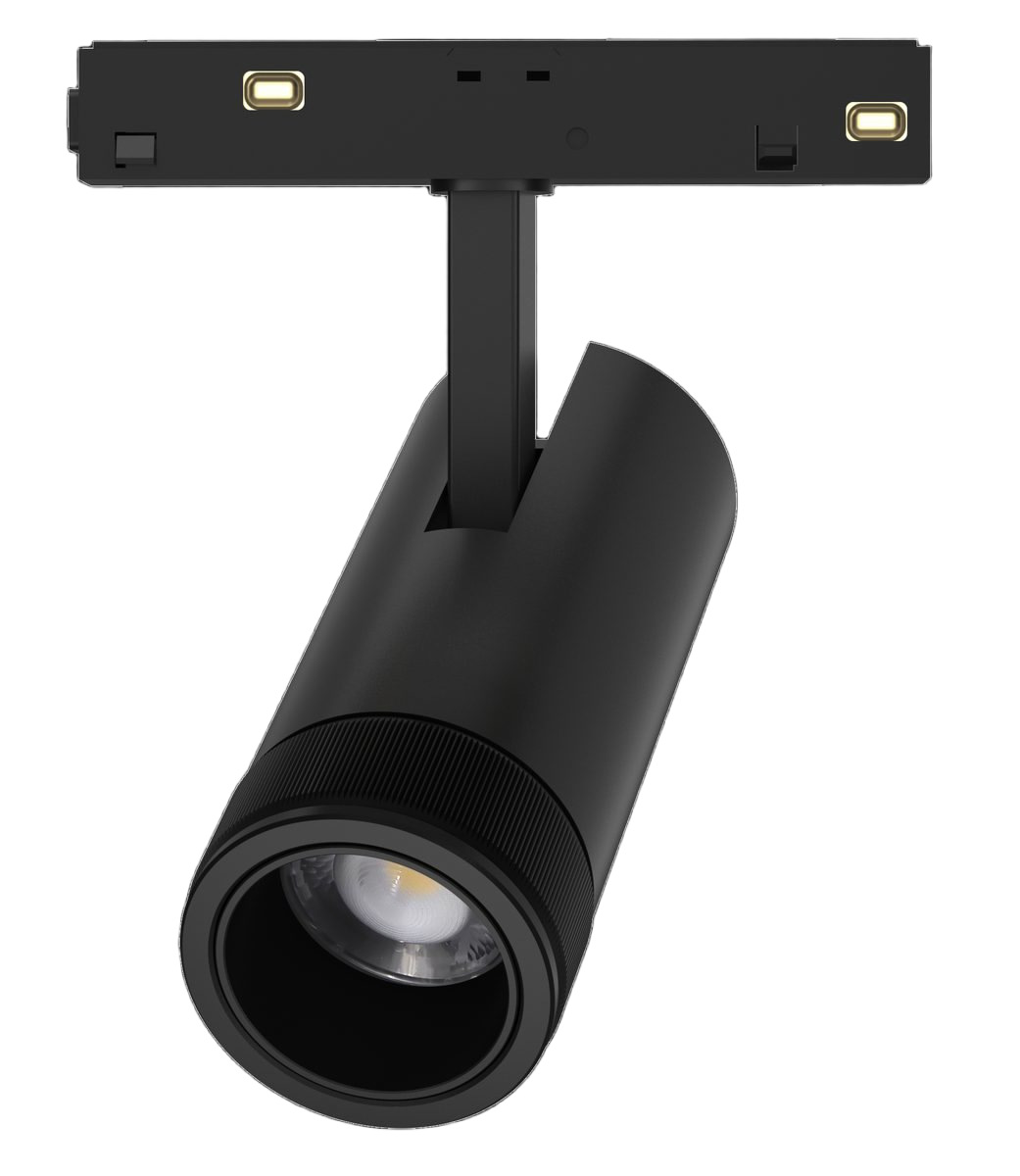

| Module | Cut light (zoom) | 3 W | 420 lm, 15–35° |

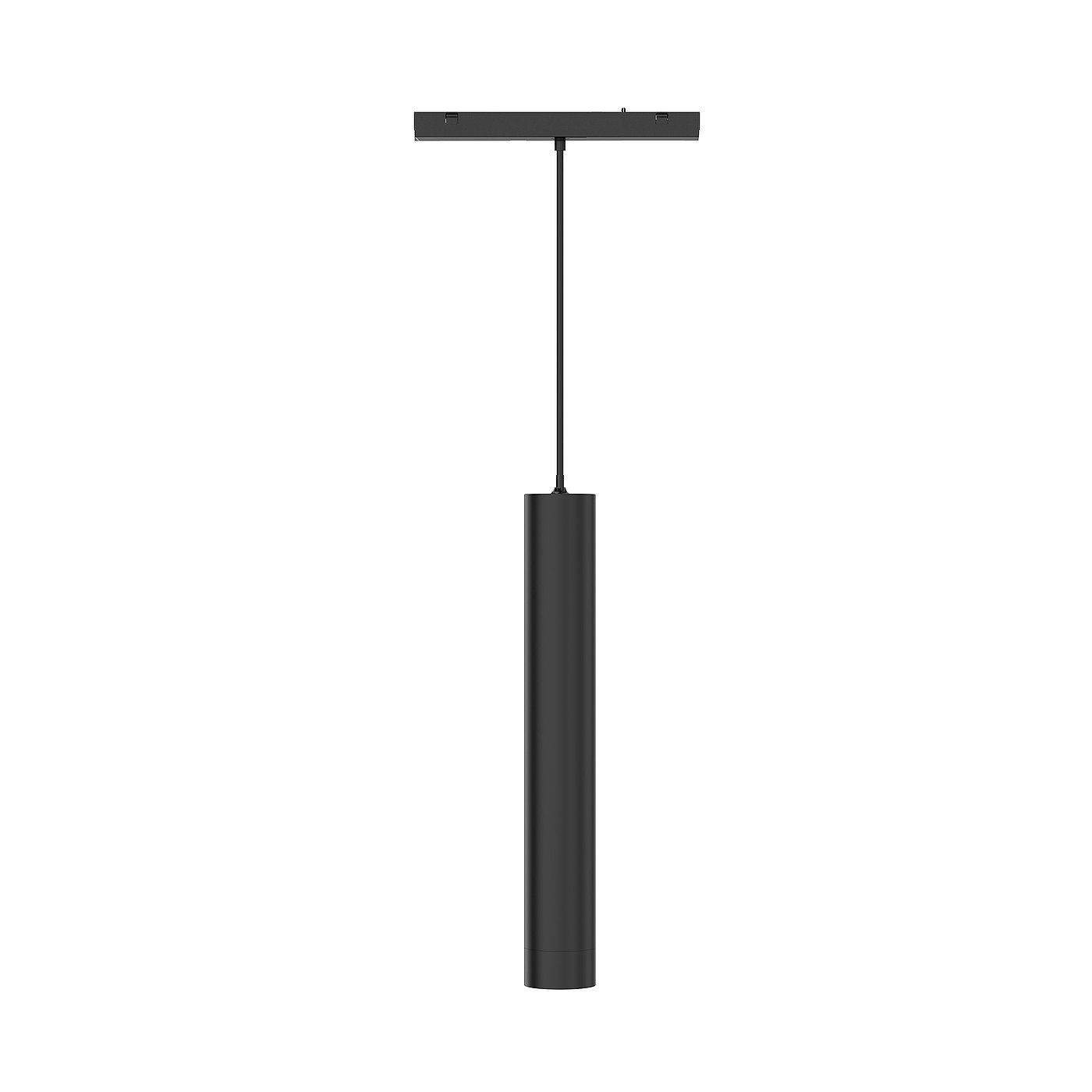

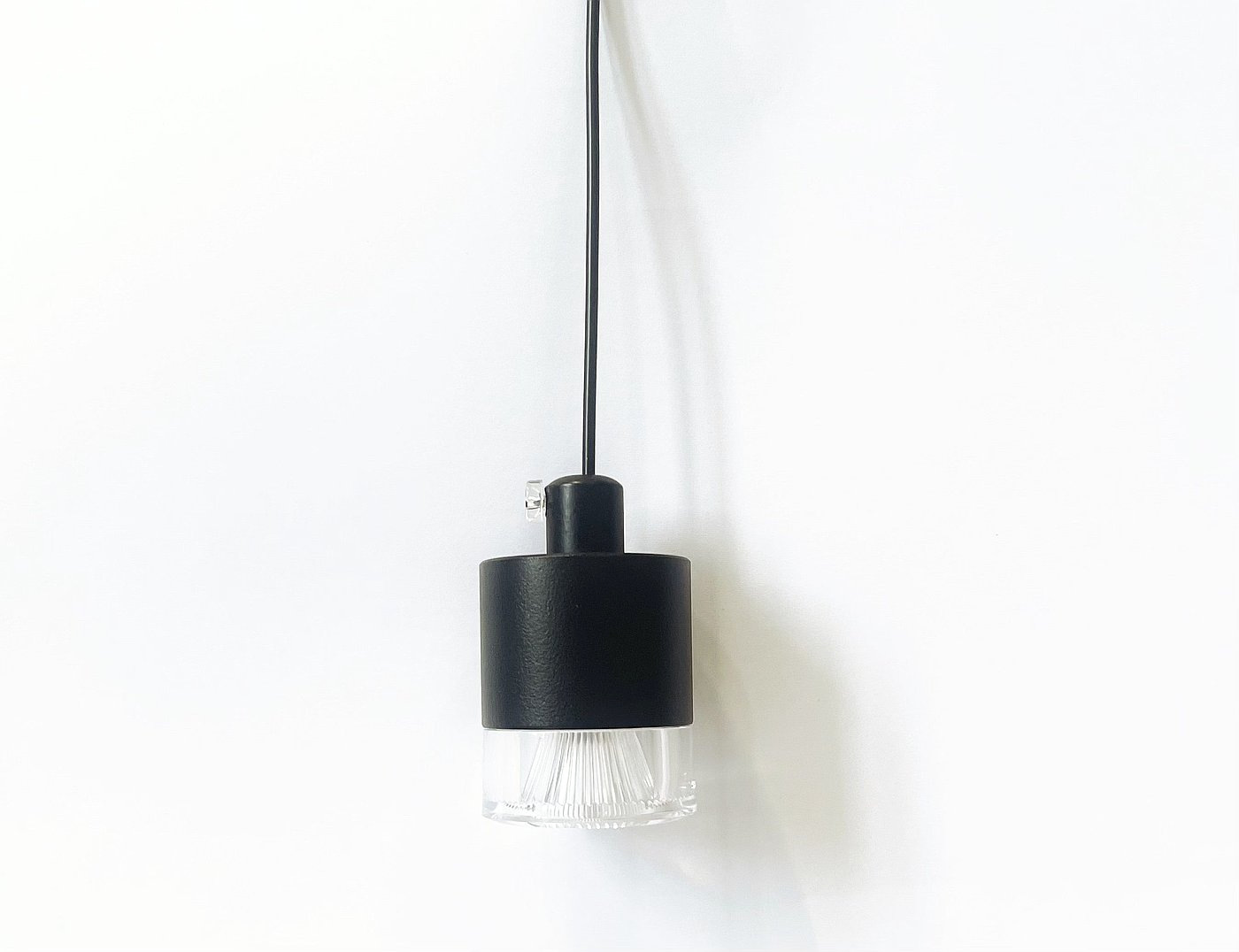

| Module | Pendant cylinder | 5 W | 420 lm |

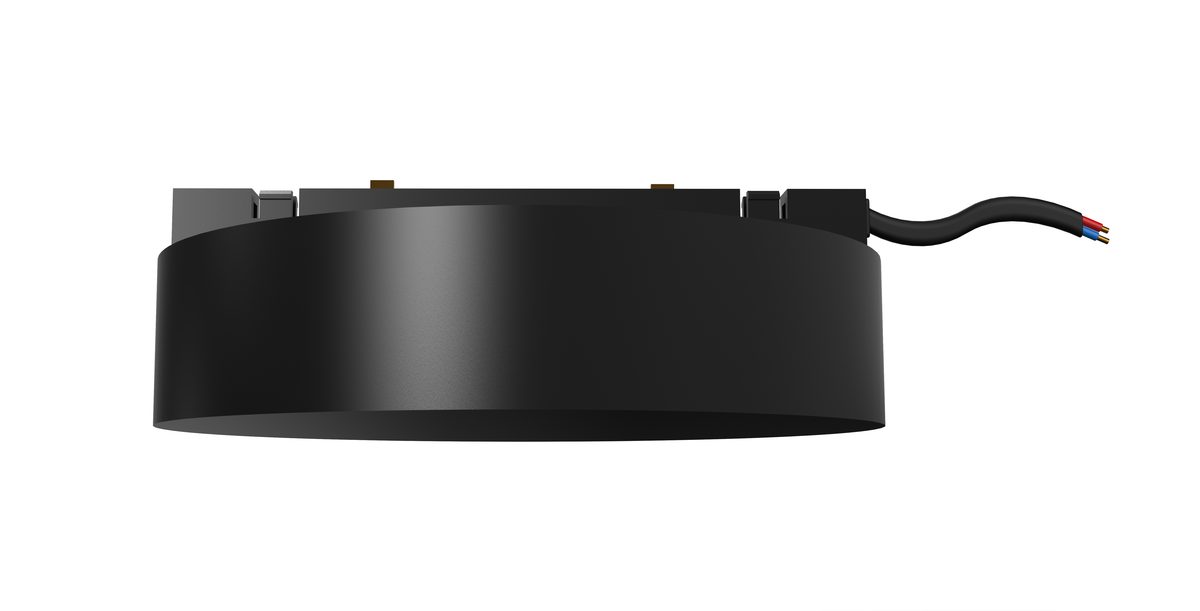

| Module | Atmosphere disc | 5 W | Ø150 mm, 80° |
