F1 Plus Series LED Track Light
LUXERA F1 Plus LED track light, 10–40 W, aluminium reflector, 15°/24°/36°/45° beam, CRI up to 97, with 2/3/4/6-wire track adapters and 3CCT and 5CCT versions.
Description
F1 Plus is the integrated-body mains tracklight in the range. An aluminium reflector gives clean beam edges, and the series is available in single colour, 3CCT and 5CCT switchable versions.
Adapters are available for 2-wire and 3-wire single-phase track and for 4-wire and 6-wire three-phase track, so one body serves most European installations.

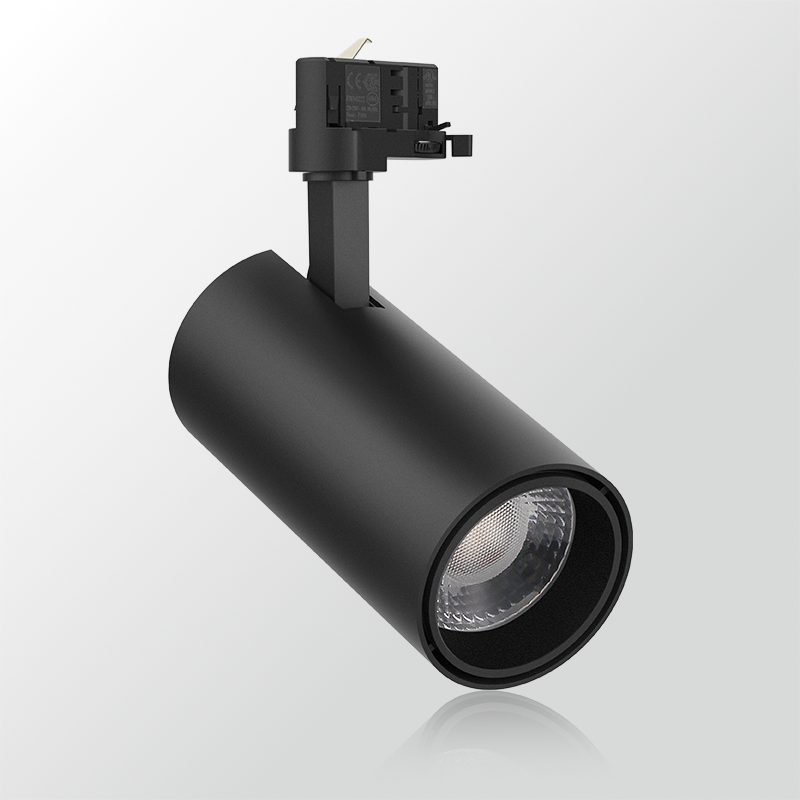

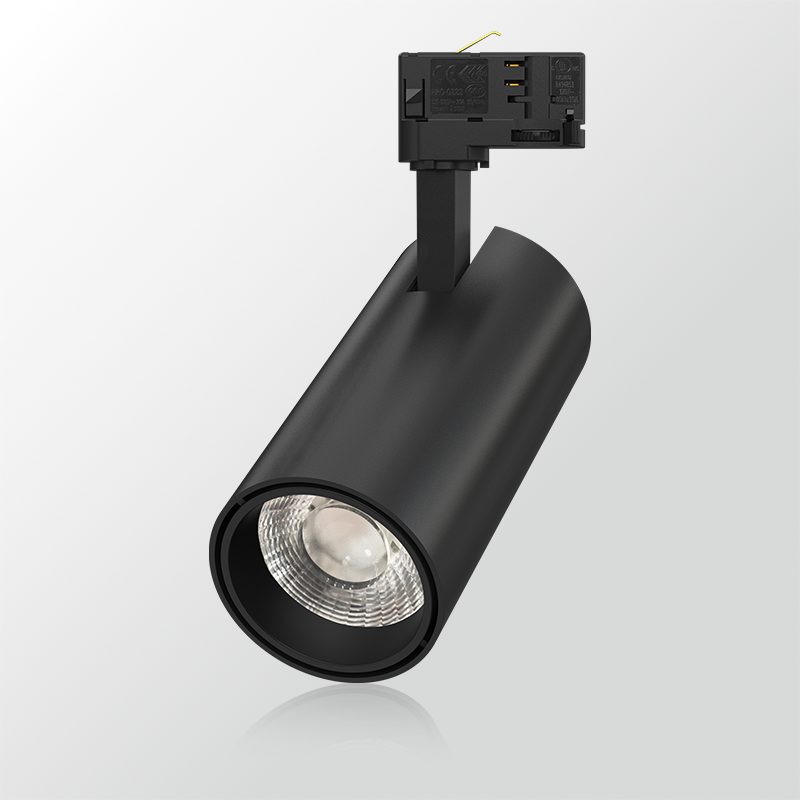

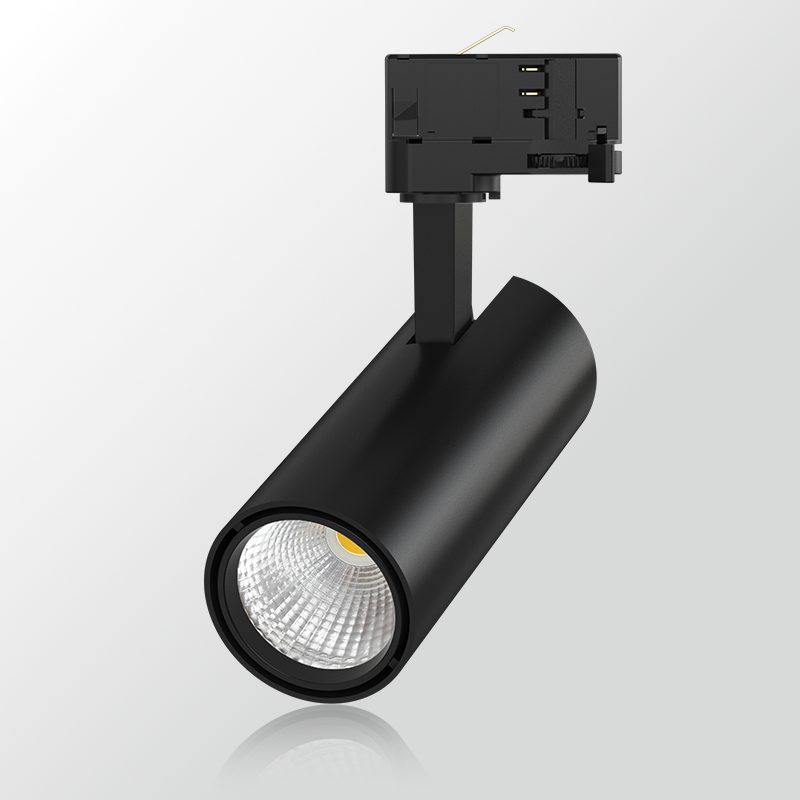

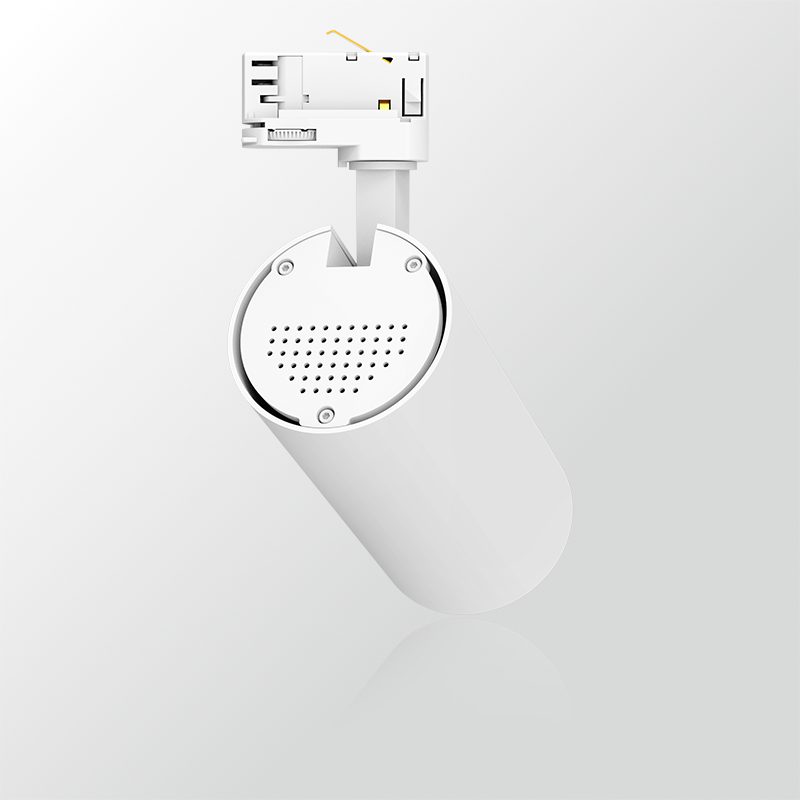

Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features
- Integrated design, aluminium reflector
- Beam angle 15° / 24° / 36° / 45°
- CRI 80+ / 90+ / 97+
- LED lumen above 140 lm/W
- L90 / 50,000 h
- On/off, TRIAC and DALI versions
- 3CCT and 5CCT switchable versions available
- White, black and silver finish
- Track adapters for 2/3-wire 1 phase and 4/6-wire 3 phase
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Power | 10 W / 15 W / 20 W / 25 W / 30 W / 35 W / 40 W |
|---|---|
| LED voltage | DC36V |
| Optics | Aluminium reflector |
| Beam angle | 15° / 24° / 36° / 45° |
| CRI | 80+ / 90+ / 97+ |
| SDCM | <3 |
| Lifetime | L90 / 50,000 h |
| Voltage | AC200–240V, 50/60 Hz |
| Dimmable | On/off, TRIAC, DALI |
| Track adapter | 2/3-wire 1 phase, 4/6-wire 3 phase |
| Finish | White, black, silver |
| Protection | IP20 |
Product list
F1 Plus series
Wattage to diameter mapping and the LX model codes for the 3CCT and 5CCT versions toConfirm.
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-10W-F1P | 10 W | DC36V | 250 mA | 100–110 lm/W | D62 |
| LX-TL-15W-F1P | 15 W | DC36V | 350 mA | 100–110 lm/W | D62 |
| LX-TL-20W-F1P | 20 W | DC36V | 500 mA | 100–110 lm/W | D75 |
| LX-TL-25W-F1P | 25 W | DC36V | 600 mA | 100–110 lm/W | D75 / D85 |
| LX-TL-30W-F1P | 30 W | DC36V | 700/750 mA | 100–110 lm/W | D85 |
| LX-TL-35W-F1P | 35 W | DC36V | 800 mA | 100–110 lm/W | D85 |
| LX-TL-40W-F1P | 40 W | DC36V | 950 mA | 100–110 lm/W | D85 |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Application scenarios
Illustrative scene — representative application.
Which track system
4-Wire system
Three circuits on one run.
6-Wire system
Additional circuits and control channels.
